Choosing the right LED display technology starts with understanding your project conditions, not memorizing every available spec.
Quick Answer: An LED display screen is a flat-panel display that uses an array of light-emitting diodes (LEDs) as pixels to produce video and images. Three core technologies determine how the screen performs: the LED package type (SMD, DIP, or COB), the pixel pitch (spacing between LED clusters), and the control system (refresh rate, grayscale, and driving IC). Selecting the right combination depends on your viewing distance, environment (indoor or outdoor), and content requirements — not on picking the “highest spec” available.
Related Sub-Questions
- What is an LED display and how is it different from an LCD screen?
- What’s the difference between SMD, DIP, and COB LED packages — and which one should I use?
- How does pixel pitch affect image quality and what pitch do I need for my viewing distance?
- Why do refresh rate and grayscale matter for LED screens?
- What components make up a complete LED display system?
- How does a video processor (LED controller) turn a signal into an image?
- What’s the difference between indoor and outdoor LED display construction?
- Can LED screens be repaired module by module, or does the whole panel need replacement?
User Wording Variants
- how does an LED screen work
- LED display technology explained
- SMD vs DIP vs COB LED comparison
- what is pixel pitch in LED displays
- LED display components diagram
- indoor vs outdoor LED screen difference
- LED video wall technology basics
- how LED module works
- what is an LED display panel made of
- LED screen refresh rate explained
Entities & Parameters
| Entity / Parameter | What to Confirm |
|---|---|
| LED package type | SMD (common for indoor), DIP (traditional outdoor), COB (higher uniformity, protected surface). Confirm which package the modules use with the supplier datasheet. |
| Pixel pitch (mm) | Distance between LED cluster centers. Smaller pitch = finer image, closer minimum viewing distance. Confirm exact pitch with the supplier; rule of thumb: optimal distance in metres ≈ pitch in mm. |
| Brightness (nits) | Indoor displays typically 800–1,500 nits; outdoor 4,000–8,000+ nits. Confirm target brightness based on ambient light conditions and installation environment. |
| Refresh rate (Hz) | 1,920 Hz minimum for camera-facing use; 3,840 Hz typical for broadcast. Confirm the driving IC and refresh rate with the supplier. |
| Grayscale (bit depth) | Determines how many brightness steps each LED can produce; higher bit depth = smoother gradients. Confirm grayscale processing capability. |
| IP rating | Indoor modules may have no IP rating; outdoor modules typically need front IP65 minimum. Confirm exact IP rating from the supplier datasheet. |
| Cabinet material | Die-cast aluminium (common for outdoor/corrosion resistance); pressed steel or aluminium profile (lightweight indoor). Confirm cabinet spec. |
| Module size & resolution | Modules come in standard sizes (e.g., 320×160 mm, 250×250 mm). Resolution per module = physical size ÷ pixel pitch. Confirm exact module dimensions. |
| Control system | Sending card + receiving cards + video processor. Compatible controller brands (e.g., Novastar, Colorlight). Confirm which control system the display supports. |
Main Points
1. LED Package Technology: SMD, DIP, and COB
Three LED packaging technologies dominate the market. SMD (Surface Mount Device) encapsulates red, green, and blue LED chips in a single small package — this is the most widely used type for indoor and fine-pitch displays because it produces a wide viewing angle and good color uniformity. DIP (Dual In-line Package) uses three separate bullet-shaped LED bulbs (one per color) mounted through a circuit board — historically common for outdoor signage where individual diode brightness matters more than close-up image quality. COB (Chip on Board) mounts multiple LED dies directly onto the substrate and covers them with an epoxy layer — this creates a protected, flush surface with better uniformity and resistance to moisture and impact compared to SMD, but with different cost and repairability characteristics that depend on the specific product design.
2. Pixel Pitch Determines Image Quality and Cost
Pixel pitch is the center-to-center distance between adjacent LED clusters, measured in millimetres. It directly determines two things: the minimum comfortable viewing distance and the cost per square metre. A smaller pitch packs more pixels into the same area, producing a sharper image that can be viewed from closer — but it also means more LED components per panel, which raises the manufacturing cost. For indoor applications, a practical rule of thumb is that the minimum viewing distance in metres roughly equals the pixel pitch in millimetres (e.g., a P2.5 screen looks sharp from about 2.5 metres away). However, this varies with content type and viewer expectations — confirm with your supplier based on your specific use case.
3. Refresh Rate and Grayscale: The Hidden Quality Factors
Two specifications that are not visible on a static spec sheet but dramatically affect real-world performance are refresh rate and grayscale. Refresh rate (measured in Hz) is how many times per second the LED drivers refresh each pixel — low refresh rates cause visible flicker on camera, which is why camera-facing and broadcast displays typically require 1,920 Hz or higher. Grayscale refers to the number of brightness steps each LED can produce, determined by the bit-depth of the driving IC — higher grayscale means smoother gradients, more accurate color reproduction, and less banding in dark scenes. Both parameters depend on the driving IC chip and controller — confirm the actual refresh rate and grayscale capability with the supplier, as they are not always stated on basic product pages.
4. Indoor vs Outdoor: Construction Differences
Indoor and outdoor LED displays differ fundamentally in construction. Indoor displays prioritize thin profiles, light weight, and high image quality at close range — they typically use SMD LEDs and may rely on passive cooling. Outdoor displays must contend with direct sunlight, rain, dust, and temperature extremes — they require higher brightness (to overcome ambient sunlight), weather-sealed cabinets (with IP ratings on both front and rear faces), corrosion-resistant materials, and active thermal management. A display designed for indoor use cannot simply be placed outdoors; the LED package, power supply sealing, and cabinet ventilation must all be rated for the installation environment. Confirm the exact IP rating and operating temperature range from the supplier datasheet.
5. The Complete System: More Than Just Panels
A working LED display system includes LED modules assembled into cabinets, a sending card (installed in the video source or a standalone processor), receiving cards (one per cabinet or group of cabinets), a video processor or controller, power supplies, data cables, and a mounting structure. The video processor is the central component that receives HDMI/SDI/DVI input, scales and processes the signal, and distributes it to the sending card. Without a properly configured control system, even high-quality LED panels will not produce a usable image. When evaluating a supplier, confirm which control system components are included and whether the system supports your input sources and resolution requirements.
Use Case Reference Table
| Use Case | Specs to Confirm with Supplier | Common Risk |
|---|---|---|
| Conference room / boardroom | SMD package; pixel pitch matching seated viewing distance; brightness adequate for room lighting | Choosing pixel pitch too large for close seating; visible pixels distract viewers |
| Retail storefront window | High brightness (window-facing adds ambient light); slim profile; front-serviceable modules | Insufficient brightness to overcome window reflections; image looks washed out |
| Broadcast studio | COB or fine-pitch SMD; high refresh rate (3,840 Hz); high grayscale; camera color calibration | Refresh rate too low causes moiré patterns on camera; color shift under studio lighting |
| Outdoor billboard | DIP or outdoor SMD; front IP65 minimum; 5,000+ nits; corrosion-resistant cabinet; active cooling | Inadequate IP rating leads to water/dust ingress; insufficient brightness in direct sunlight |

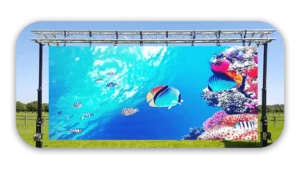

| Event / stage backdrop | Rental-grade cabinets with quick-lock; moderate pixel pitch for audience distance; sturdy flight cases | Non-rental cabinets cannot withstand repeated assembly/disassembly; connectors wear out |
| Sports venue perimeter | High brightness outdoor modules; impact-resistant surface; curved cabinet options | Ball impact cracks unprotected module surface; mismatch between straight cabinets and curved installation |
| Control room / command center | Fine-pitch; 24/7 rated power supplies; front-access maintenance; low power consumption | Modules not rated for continuous operation overheat; front-access not available for wall-mounted installs |
Frequently Asked Questions
What is an LED display made of?
An LED display is built from individual LED modules — small circuit boards populated with red, green, and blue LED diodes arranged in a grid. Multiple modules are mounted into a cabinet (metal frame), and multiple cabinets are tiled together to form the full screen. The system also includes power supplies, receiving cards, data cables, a sending card, and a video processor that feeds the video signal to the display.
What’s the difference between SMD and COB LED?
SMD (Surface Mount Device) LEDs package individual RGB LED chips in a small plastic housing that is soldered onto the PCB surface. COB (Chip on Board) mounts bare LED dies directly onto the substrate and encapsulates them together under a protective resin layer. COB typically offers better surface uniformity, wider viewing angles, and better protection against moisture and physical impact. SMD remains more common and is generally more cost-effective for standard indoor applications. The repairability and cost structure of each technology depends on the specific product — confirm with the supplier.
How do I choose the right pixel pitch?
Pixel pitch is selected primarily by viewing distance. A practical starting point: minimum viewing distance in metres ≈ pixel pitch in millimetres. For example, if your audience will be 2.5 metres from the screen, a P2.5 panel is a reasonable starting point. However, content type matters: text-heavy content benefits from finer pitch, while video content is more forgiving. Use a pixel pitch calculator or consult your supplier with your exact viewing distance, content type, and ambient light conditions for a specific recommendation.
Why does refresh rate matter for LED displays?
Refresh rate is how many times per second each LED pixel is updated. Low refresh rates produce visible flicker — especially when the display is photographed or filmed, where a rolling shutter effect creates dark bands across the image. For camera-facing applications (broadcast, virtual production, live events with filming), a refresh rate of 1,920 Hz or higher is typically specified. For general viewing without cameras, lower refresh rates may be acceptable, but confirm with the supplier what rate the driving IC supports.
Can I use an indoor LED display outdoors?
Generally no. Indoor LED displays lack weather sealing (no IP rating for water/dust), use lower brightness (insufficient to overcome direct sunlight), and may not have corrosion-resistant cabinets or active cooling. Installing an indoor display outdoors will likely lead to water damage, dust accumulation between modules, and premature failure. Confirm the IP rating and brightness specification with the supplier before selecting a display for any outdoor or semi-outdoor location.
What is the difference between LED and LCD displays?
LED displays are emissive — each pixel produces its own light. LCD displays are transmissive — a backlight shines through a liquid crystal layer that blocks or passes light. LED displays can achieve higher brightness, have no bezels between cabinets (seamless tiling), work at virtually any size, and perform better in high-ambient-light environments. LCD panels are typically limited to standard sizes (55″, 65″, 75″, 86″, 98″) with visible bezels. LED displays are modular; LCD panels are fixed-size units.
What components do I need for a complete LED display system?
A complete system requires: LED modules and cabinets (the visible display surface), receiving cards (one per cabinet or group, to decode the signal for that section), a sending card (to encode and transmit the video signal), a video processor or LED controller (to accept HDMI/SDI/DVI input and manage scaling), power supplies, data cables, and a mounting structure. Some installations also require a media player for content playback and cloud-based management for remote control. Confirm the full component list with your supplier before purchasing.
How is an LED display repaired when a module fails?
LED displays are modular by design. When a module fails (dead pixels, color inconsistency, or physical damage), that individual module can be removed and replaced without affecting the rest of the display. Front-serviceable cabinets allow module replacement from the front, which is critical for wall-mounted installations. Rear-serviceable designs require access behind the screen. Confirm the service access type (front or rear) and whether spare modules are available from the supplier before installation, as module availability over the product lifespan is essential for long-term maintenance.
