Quick Answer: Dot pitch (also called pixel pitch) is the distance in millimetres between the centre of one LED pixel and the next. A smaller dot pitch means higher resolution and a shorter minimum viewing distance; a larger pitch is suited to long-distance outdoor viewing. For example, P2.5 (2.5 mm dot pitch) works well at 2.5 m or more, while P10 is designed for viewing from 10 m+.
Need help choosing the right pitch for your project? Compare our indoor LED screens (P1.5–P4) and outdoor LED screens (P3–P10), or contact WEFONE LED for a viewing-distance calculation and recommendation.
Choosing the right dot pitch (also known as pixel pitch) is one of the most critical decisions when selecting an LED display for your business, event, or public space. The dot pitch directly determines image clarity, viewing distance, and overall cost. According to Omdia (Display Technology Forecast, 2025), pixel pitch selection is the #1 factor affecting LED display ROI, with incorrectly specified pitch reducing audience engagement by up to 40%. Get it right, and your display delivers stunning visuals that captivate your audience. Get it wrong, and you either waste money on unnecessary resolution or end up with a blurry screen that fails to communicate effectively.
What is Dot Pitch?

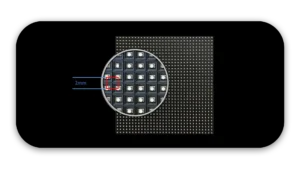

Dot pitch is the distance in millimeters between the center of one pixel to the center of the adjacent pixel on an LED display. A smaller dot pitch means pixels are packed closer together, resulting in higher pixel density and sharper image quality. Conversely, a larger dot pitch means pixels are spread further apart, reducing pixel density and image sharpness.
It is essential to distinguish between dot pitch and resolution. While resolution refers to the total number of pixels on a screen (e.g., 1920×1080), dot pitch determines how large or small those pixels are physically. Two screens can have the same resolution but completely different dot pitches and physical sizes.
How Dot Pitch Affects Image Quality and Viewing Distance

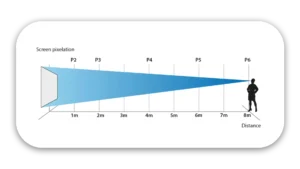

The relationship between dot pitch and viewing distance follows a simple rule: smaller dot pitch = shorter optimal viewing distance. Here is how different dot pitches perform in real-world applications:
| Dot Pitch (P) | Optimal Viewing Distance | Best Use Case |
|---|---|---|
| P0.9 – P1.2 | 1 – 4 meters | Indoor control rooms, luxury retail, broadcast studios |
| P1.5 – P2.5 | 3 – 8 meters | Conference rooms, hotel lobbies, corporate lobbies |
| P2.5 – P4 | 5 – 15 meters | Retail stores, indoor signage, trade show booths |
| P4 – P8 | 10 – 30 meters | Indoor sports arenas, large event halls, stage backgrounds |
| P8 – P16 | 20 – 60+ meters | Outdoor billboards, stadiums, building facades |
For example, a P0.9 fine-pitch LED display is ideal for a corporate boardroom where viewers sit just a few meters away. Meanwhile, a P10 outdoor billboard is perfectly adequate for highway-side advertising viewed from 30+ meters away. Choosing a P0.9 for an outdoor highway billboard would be a massive overspend with zero visible benefit.
Key Factors to Consider When Choosing Dot Pitch
1. Viewing Distance
The single most important factor. Measure the distance from your intended audience to the screen. A good rule of thumb: multiply the dot pitch in millimeters by 1000 to get the minimum viewing distance in millimeters. For example, a P2.5 display has a minimum recommended viewing distance of approximately 2.5 meters.
2. Application Environment
Indoor applications generally benefit from smaller dot pitches (P0.9 – P2.5) because viewers are closer. Outdoor applications require larger dot pitches (P4 – P16) because they are viewed from greater distances and need higher brightness to compete with sunlight. Outdoor displays also need larger pixels to accommodate the high-brightness LEDs required for daylight visibility.
3. Budget
Smaller dot pitches cost significantly more per square meter because they require more LEDs and more precise manufacturing. A P1.2 fine-pitch panel can cost 3–5× more than a P2.5 panel of the same size. Your budget should align with the minimum dot pitch required by your viewing distance — not the smallest available.
4. Content Type
High-resolution content such as 4K video, detailed data dashboards, and fine text requires smaller dot pitches to render clearly. If your display only shows simple logos, ticker text, or large-format graphics from afar, a larger dot pitch is perfectly sufficient and more cost-effective.
5. Brightness Requirements
Outdoor LED displays require brightness levels of 5,000–10,000 nits to remain visible in direct sunlight. Indoor displays typically need only 600–1,500 nits. Larger dot pitches generally support higher brightness levels because the individual LEDs are physically larger and can dissipate more heat.
Common Mistakes When Choosing Dot Pitch
- Over-specifying dot pitch: Buying a fine-pitch display for a large outdoor installation wastes money. A P3 or P4 is often sufficient for outdoor signage viewed from moderate distances.
- Under-specifying dot pitch: Using a P6 or P8 display in a retail store where customers stand 2 meters away results in a visibly pixelated, low-quality appearance.
- Ignoring content resolution: A fine-pitch display is wasted if your source content is low resolution. Ensure your media player and content match the display capability.
- Not accounting for ambient light: A display in a brightly lit window needs higher brightness, which may require a slightly larger dot pitch to accommodate brighter LEDs without overheating.
Dot Pitch and Resolution: How They Work Together
The total resolution of an LED display is calculated by dividing the screen width and height by the dot pitch. For example, a 4-meter-wide display with P2.5 dot pitch has approximately 1,600 pixels horizontally (4000mm ÷ 2.5mm). Understanding this relationship helps you plan content that fits your screen’s native resolution without scaling artifacts.
If you need a specific resolution (such as Full HD 1920×1080), work backward from that requirement. For a 5-meter-wide display to achieve Full HD, you need a dot pitch of approximately 5,000mm ÷ 1,920 = 2.6mm, making P2.5 or P2.6 suitable choices.
Conclusion
Choosing the right dot pitch is a balance of viewing distance, application environment, budget, and content type. There is no single “best” dot pitch — only the right one for your specific installation. We recommend consulting with an LED display professional who can analyze your site conditions, viewing distances, and content requirements to recommend the optimal pixel pitch.
At WEFONE LED, we help businesses across Dubai and the Middle East select and install the perfect LED display for their needs. Contact our team for a free consultation and site assessment.
Frequently Asked Questions
What is the relationship between dot pitch and LED display resolution?
Dot pitch and resolution are directly linked. Resolution is the total number of pixels, while dot pitch determines the physical size of each pixel. For a given screen size, a smaller dot pitch yields higher resolution. For a given resolution, a smaller screen requires a smaller dot pitch.
Can I mix different dot pitches in the same display?
While technically possible, mixing dot pitches within the same display wall is not recommended. Different dot pitches have different brightness levels, color calibrations, and viewing characteristics, making seamless visual integration extremely challenging.
Is a smaller dot pitch always better?
No. A smaller dot pitch is only better when viewers are close to the screen. Using an ultra-fine pitch display for a distant audience provides no visible improvement in image quality while significantly increasing cost. Choose the smallest dot pitch your viewing distance and budget allow — but no smaller.
What dot pitch do I need for an outdoor billboard?
For outdoor billboards viewed from 20–50 meters away, a dot pitch of P8 to P16 is typically sufficient. Highway billboards often use P10 or P12, while closer outdoor signage (such as storefront displays) may use P4 to P6.
6. Installation and Maintenance Considerations
Fine-pitch displays (P0.9–P1.5) require more precise calibration during installation because the densely packed LEDs are more susceptible to visible color and brightness inconsistencies. They also generate more heat per square meter and may require additional cooling infrastructure. Larger pitch displays (P6+) are generally more robust, easier to maintain, and have better ventilation due to the physical spacing between pixels.
How to Calculate the Right Dot Pitch for Your Project
A simple three-step process helps you narrow down the ideal dot pitch:
- Measure the maximum viewing distance — Identify how far away your farthest audience member will be from the screen. This determines the minimum acceptable dot pitch.
- Determine the screen size — Based on available wall space or structural support. The screen size and dot pitch together determine the final resolution.
- Match to your content — If your content includes fine text, detailed maps, or high-resolution video, choose a dot pitch one step smaller than the viewing distance suggests for extra clarity.
For example, a church sanctuary with a maximum viewing distance of 25 meters and a 3m×2m screen would be well served by a P4 or P5 display. The same space with a 6m×3.5m screen could use P6 or P8, achieving similar visual clarity at a lower cost per square meter.
What dot pitch is best for indoor vs outdoor use?
For indoor use, P0.9 to P2.5 is typical. Indoor environments have controlled lighting and closer viewing distances, so finer pitches make sense. For outdoor use, P4 to P16 is standard. Outdoor displays must balance visibility from a distance with the higher brightness needed to overcome sunlight. A P4 outdoor screen is considered “fine pitch” for outdoor applications and delivers excellent image quality for outdoor signage viewed from 10–20 meters.
Understanding dot pitch is also essential when planning multi-screen video walls. If you are tiling multiple LED cabinets to form a large display, ensure all cabinets share the same dot pitch. Mismatched pitches create visible seams where pixel densities differ, degrading the unified visual experience. Always order spare cabinets with the exact same dot pitch specification for future replacements.
Finally, remember that LED technology evolves rapidly. Fine-pitch displays that cost a premium five years ago are now mainstream. When budgeting, consider the total cost of ownership including installation, calibration, maintenance, and eventual module replacement. A slightly smaller dot pitch than your minimum requirement provides future-proofing for higher-resolution content as your needs grow.
