Description

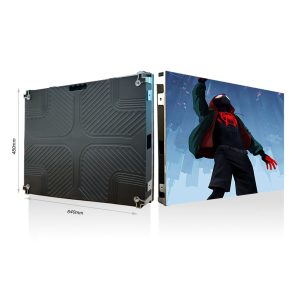

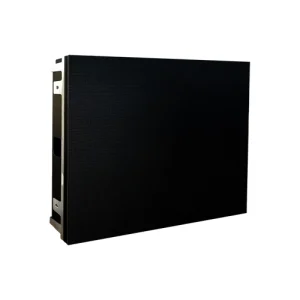

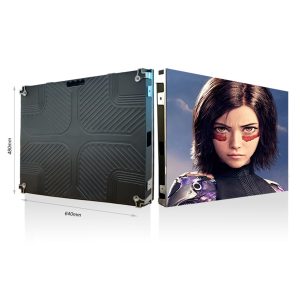

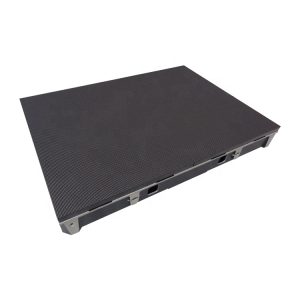

Our P1.5 Indoor LED Screen Cabinets are designed to deliver the highest level of image clarity and performance for indoor applications. Featuring an ultra-fine pixel pitch of 1.5mm, these cabinets ensure crisp, detailed images and smooth, flicker-free video playback. Perfect for luxury retail displays, corporate presentations, broadcast studios, and high-end event backdrops, the P1.5 cabinets offer exceptional visual quality and reliability.
Key Features
- Ultra-High Resolution: P1.5 pixel pitch provides incredibly detailed and sharp images, ideal for close viewing distances.
- High Refresh Rate: 3840Hz refresh rate for seamless, flicker-free video playback.
- Wide Viewing Angle: 160° horizontal and 140° vertical viewing angles for optimal visibility from various angles.
- Durable Construction: Made from high-quality materials for reliable indoor performance.

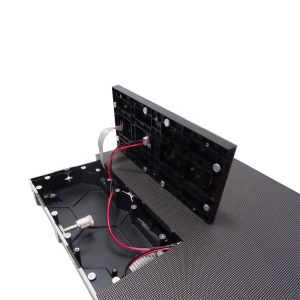

- Easy Installation and Maintenance: Modular design with front and rear serviceability for quick and easy setup and maintenance.
- Energy Efficient: Low power consumption to reduce overall power costs.
Specifications:
| Physical | Pixel pitch (mm) | 1.538 |
| Cabinet Resolution (WxH) | 416 x 312 | |
| Module Size(mm) | 640(W) X 480(H) X 75(D) | |
| Cabinet Body | Die-Casting Aluminum | |
| Cabinet Weight | 10KG | |
| Input voltage | DC 5V | |
| Watt (W) | 19 | |
| 40A power supply support | 6PCS | |
| Optical | Color correction technology | support |
| Brightness (nits) | 700cd | |
| Color temperature (TC) | 11507K | |
| Viewing angle (V/H) | 140/140 | |
| Color Uniformity | ≥98% | |
| Contrast ratio | 212.6994056 | |
| Electric | Maximum Power (W/Sqm) | 464 |
| Average Power (W/Sqm) | 301 | |
| Power supply | AC90~132V/AC186~264V, 47~63(Hz) | |
| Security standard | GB4913/ENG0950 | |
| Performance | Video Frequency | 60Hz |
| drive mode | Constant /52 scan | |
| Grayscale | 8192 | |
| Refresh rate | 3840Hz | |
| Color Bits | 13Bit | |
| Environment | Life span (hrs) | 100,000 |
| Working ambiance | 20℃~50℃ / 10%~65%RH | |
| Storage ambience | 10℃~30℃ / 10%~60%RH |
