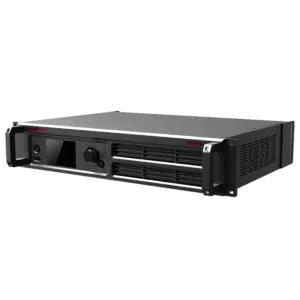

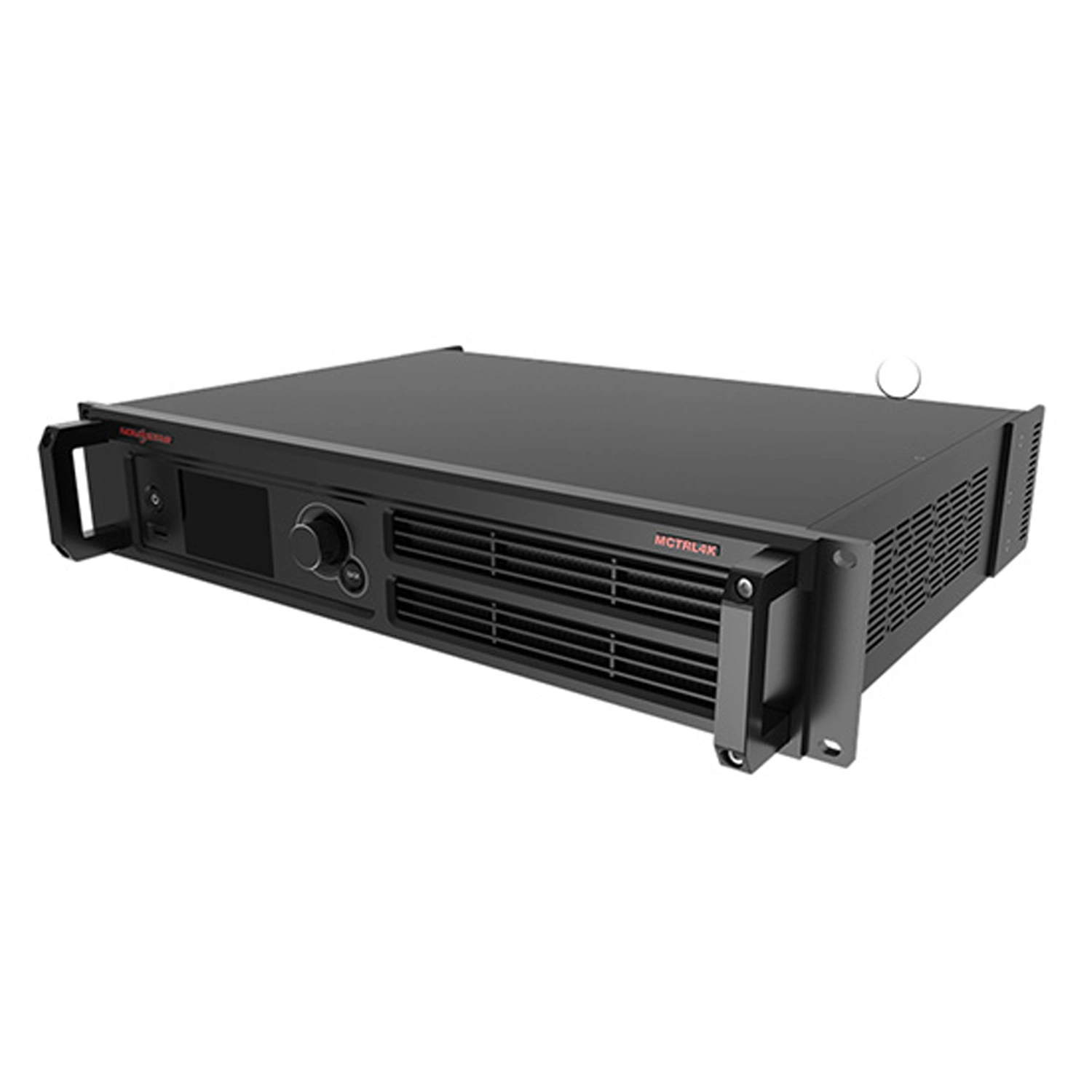

NovaStar MCTRL 4K sending box

14113 AED

Fast Response to serve you better

  • Onsite visit upon appointment
  • Competitive price from Factory outlet
  • Local Warranty for Quality assurance

Description of the NovaStar MCTRL 4K

The NovaStar MCTRL 4K is a high-performance 4K x 2K controller, capable of handling resolutions up to 3840×2160 @ 60Hz. It supports any resolution within this range, making it ideal for very large and wide LED displays.

Dual Controller Functionality:

  • Multi-Card Mode: The MCTRL 4K can be configured as two independent controllers, allowing it to manage signals from two different input sources simultaneously.

Enhanced Image Quality:

  • HDR Support: When paired with A8s or A10s (160203-1), the MCTRL 4K supports HDR, which enhances image quality significantly.

Optimal Solution for Distance Bridging:

  • MCTRL4K and CVT4K Combination: For applications requiring long-distance connectivity between the controller and the LED display, combine the MCTRL4K with a CVT4K-S/M to achieve distances of up to 300 meters or ten kilometers.

Hardware Features:

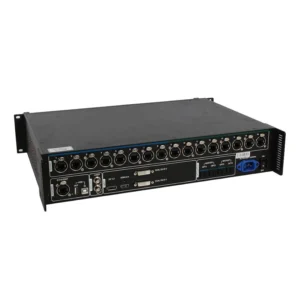

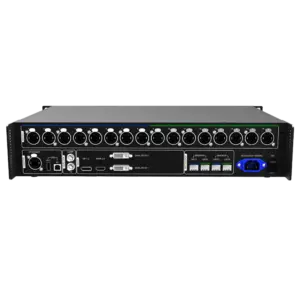

  • Inputs:
    • 1x DP 1.2
    • 1x HDMI 2.0
    • 2x Dual-Link DVI
  • Outputs:
    • 16x LED outputs (RJ45)
    • 4x OPT Out (2x Main, 2x Backup)
  • Additional Features:
    • Supports HDR10
    • 8/10/12-bit color depth
    • GENLOCK In/Loop
    • Cascading via USB
    • Control via USB or LAN (including web interface)

General Specifications:

  • Supply Voltage: AC 100-240V, 50/60Hz
  • Power Consumption: 30 watts
  • Dimensions:
    • With rack rails: 482.6 x 372 x 96 mm (WxDxH)
    • Without rack rails: 435.6 x 330 x 89 mm (WxDxH)
  • Weight: 4.6 kg
  • Weight: 7 kg
  • Size: 55 × 44 × 22 cm



4o mini

Brand

NOVASTAR

NovaStar controllers are widely used in the LED display industry for their reliability and advanced features. They provide solutions for various display types, from small indoor screens to large outdoor displays. Here's a detailed overview of NovaStar controllers:

1. Types of NovaStar Controllers

  • Synchronous Controllers: Used for real-time data display, requiring a constant connection to a source (like a computer).
    • Examples: NovaStar VX4S, NovaStar MCTRL660, NovaStar MCTRL4K
  • Asynchronous Controllers: Store content locally and display it without a continuous connection to a computer.
    • Examples: NovaStar Taurus Series (e.g., TB3, TB6), NovaStar A8S

2. Setup and Installation

  • Hardware Installation:
    • Connect the controller to the LED display.
    • Ensure power supply connections are secure.
    • Connect data cables (e.g., Ethernet or fiber optic cables) from the controller to the LED modules.
  • Software Installation:
    • Install NovaLCT or ViPlex (for asynchronous controllers) on your computer.
    • Ensure your computer and the controller are connected to the same network for configuration.

3. Programming and Content Management

  • Content Creation:
    • Use software like NovaLCT for synchronous controllers or ViPlex for asynchronous controllers to create and manage content.
    • Design your content layout, including text, images, videos, and other media.
  • Content Upload:
    • For synchronous controllers, content is streamed in real-time from the connected computer.
    • For asynchronous controllers, upload content via USB, Wi-Fi, or LAN.
  • Scheduling:
    • Set schedules for content playback through the software to automate display changes.

4. Troubleshooting Common Issues

  • No Display:
    • Verify all connections are secure and power is supplied.
    • Check the configuration settings in NovaLCT or ViPlex.
