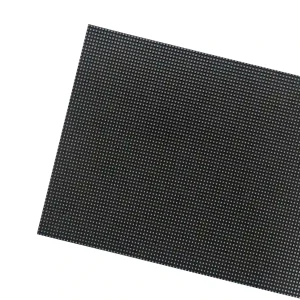

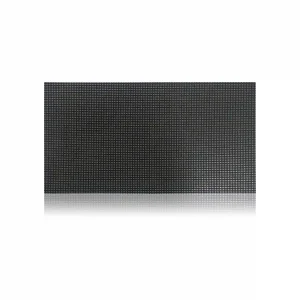

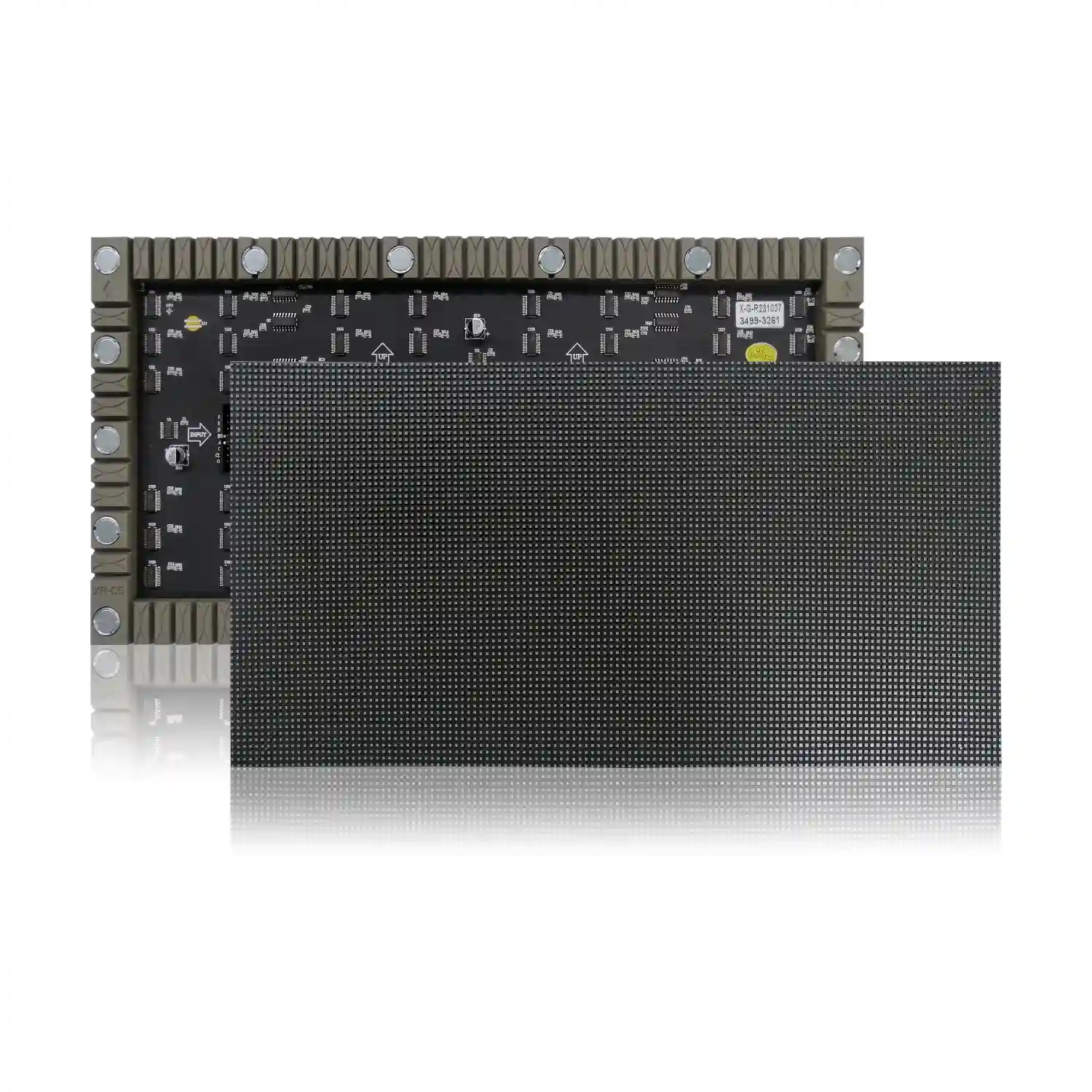

Flexible LED modules with a pixel pitch of 2.5 mm (F2.5) are designed for high-resolution, close-viewing applications. These modules are ideal for creating curved or irregular-shaped displays due to their flexibility. Here’s a comprehensive guide on handling, installing, and maintaining flexible F2.5 LED modules:
1. Understanding F2.5 Flexible LED Modules
Pixel Pitch: 2.5mm, which means the distance between the centers of two adjacent pixels is 1.5mm.

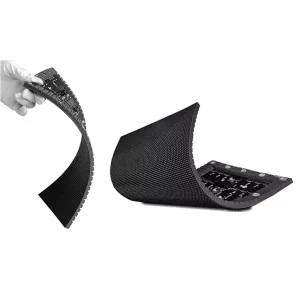

Flexibility: Designed to bend and conform to curved surfaces, allowing for creative installations.
High Resolution: Suitable for applications requiring detailed imagery and close viewing distances.
2. Components and Features

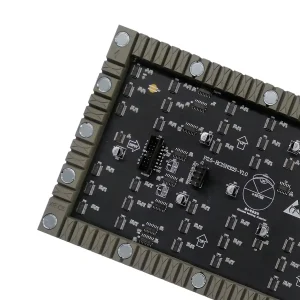

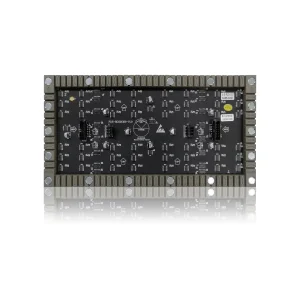

Flexible PCB: The module’s flexible printed circuit board allows it to bend without damage.
Magnetic Backing or Mounting Holes: For easy attachment to metal surfaces or structural frames.
Integrated Drivers: Ensure consistent power distribution and signal processing.
Connectors: Power and data connectors to link multiple modules.
3. Installation Process
Tools and Materials
specification
| Physical | SMD | SMD1515 |
| Pixel Pitch | 2.5 | |
| Module Resolution (dot/m2) | 160000 | |
| Module Size(mm) | 320×160 | |
| Module Weight(kg) | 0.29 | |
| Optics Parameter | Screen Brightness(nits) | 750 |
| Color Temperature(K) | 12000 | |
| Viewing Angle | 150o/120o | |
| Contrast Ration | >6000:1 | |
| Electrical Parameter | Working Voltage(V) | 5 |
| Module Power(W) | 21 | |
| Power Consumption(Max) | 410 | |
| Power Consumption(Average) | 118 | |
| Input Voltage | AC90-132V/AC186-264V, Frequency47-63Hz | |
| Applicable Standards | GB4913/ENG0950 | |
| Processing Performance | Frame shift Frequency | 60 Hz |
| Scan Mode | 32 Scan | |
| Gray Level | 4096 | |
| Refresh Frequency | 3840HZ | |
| Environmental Parameter | Life Span | 100000H |
| Working Temperature/Humidity | 20oC-40oC/20-75%RH | |
| Storage Temperature/Humidity | 20oC-40oC/20-75%RH | |
| Applicable Standards | SJT11141-2017.GB/T26125-2011.GB/T26572-2001 |
