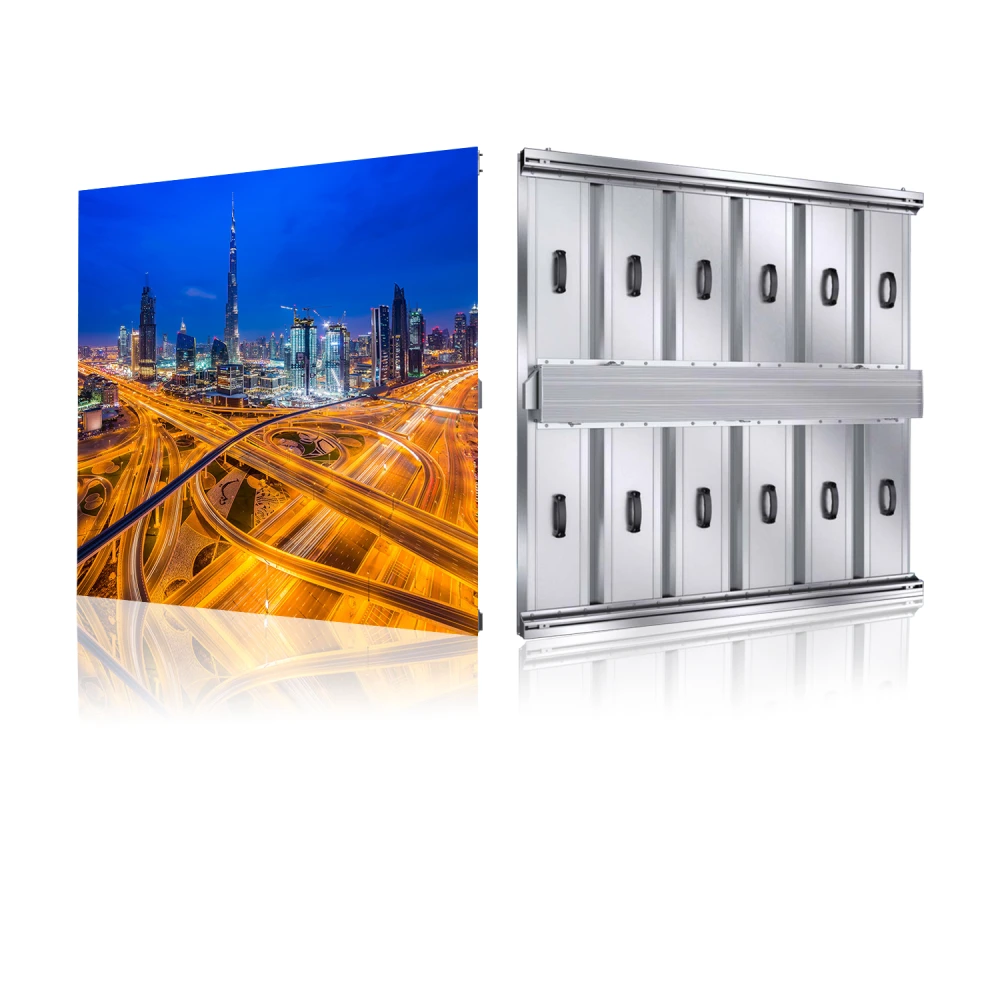

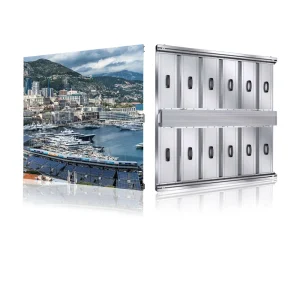

Aluminum LED Screen cabinet 960*960mm / OS-AL-P8

Aluminum LED Screen cabinet 960*960mm / OS-AL-P8

Fast Response to serve you better

  • Onsite visit upon appointment
  • Competitive price from Factory outlet
  • Local Warranty for Quality assurance
wefone led logo

Description

An aluminum LED screen cabinet with dimensions 960mm x 960mm is a crucial component in the construction of LED displays. These cabinets house the LED modules, providing structural integrity and protection while ensuring optimal performance. Here’s a detailed description:

Key Features:

  1. Material:
    • Aluminum Construction: The cabinet is made from high-quality aluminum, which is known for its lightweight, durability, and excellent heat dissipation properties. This helps in prolonging the life of the LED modules and maintaining consistent performance.
  2. Dimensions:
    • Size: The cabinet measures 960mm in height and 960mm in width. This standard size is suitable for various indoor and outdoor applications, offering versatility in assembling large screens with multiple cabinets.
  3. Design:
    • Slim Profile: The aluminum cabinet typically features a slim and sleek design, making it easy to install and integrate into various environments without occupying much space.
    • Modular Design: Facilitates easy assembly and disassembly, allowing for quick installation and maintenance. The modular approach also means that damaged parts can be replaced individually without affecting the whole display.
  4. Cooling System:
    • Efficient Heat Dissipation: Aluminum’s natural thermal conductivity ensures efficient heat dissipation, which is crucial for maintaining the performance and longevity of the LEDs.
  5. Protection:
    • IP Rating: Often, these cabinets come with a high IP (Ingress Protection) rating, ensuring protection against dust and water. This makes them suitable for both indoor and outdoor use, depending on the specific IP rating.
  6. Mounting Options:
    • Versatile Mounting: The cabinet design typically includes various mounting options, allowing for wall mounting, hanging, or stacking depending on the installation requirements.
  7. Accessibility:
    • Front/Rear Access: Some cabinets are designed for easy access to the LED modules from the front or rear, simplifying maintenance tasks such as module replacement or wiring checks.
  8. Weight:
    • Lightweight: The use of aluminum makes the cabinet lightweight, which reduces the overall weight of large LED screens, making transportation and installation easier and more cost-effective.

Specification:

Description Technical Parameter OS-AL-P8
Panel Panel size 960mm(W)*960mm(H)*89,6mm(T)
Panel resolution 120x120dots
Pixel pitch P8mm
Pixel sensity 15625 dots/m
LED specification National Star 2727 SMD
Unit size 960mm()*160mm (H)
Unit resolution W-120xH-20 dots
Weight 22 kg± 1 kg
Material Aluminum
Maintenance mode Pre/Rear maintenance
Optics
Parameter
Best viewing distance ≥ 8mm
Pixel configuration LRIGIB
Best viewing angle 120° (H)/120° (V)
Brightness of while balance ≥6000cd/m²
Color temperature 3500-9300K
Correcting Luminance/Chromatic correction
Deviation ≤3%
Homogeneity ≥97%
Electrical
Parameter
Max Power consumption 850W/m²
Average power consumption 280W/m²
Drive type 5-Jan
Driving device Constant Current driver
Working voltage AC200-240V
Main
Technical
Parameter
operating environment Outdoor
Refresh frequency 3840Hz
Framing frequency 50/60Hz
IP Grade IP65  front
Storage temperature -40℃~60℃℃
Working temperature -20℃~50℃℃
Operation humidity 10%~90%
MTBF ≥5000 hours
Life span ≥100000 hours
Blind spot rate ≤1/10000

Brand

WEFONE
