Description

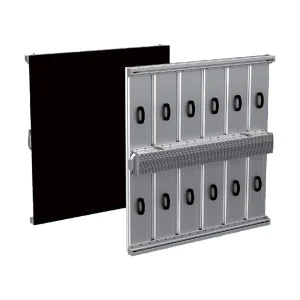

An aluminum LED screen cabinet with dimensions 960mm x 960mm is a crucial component in the construction of LED displays. These cabinets house the LED modules, providing structural integrity and protection while ensuring optimal performance. Here’s a detailed description:
Key Features:
- Material:
- Aluminum Construction: The cabinet is made from high-quality aluminum, which is known for its lightweight, durability, and excellent heat dissipation properties. This helps in prolonging the life of the LED modules and maintaining consistent performance.
- Dimensions:
- Size: The cabinet measures 960mm in height and 960mm in width. This standard size is suitable for various indoor and outdoor applications, offering versatility in assembling large screens with multiple cabinets.
- Design:
- Slim Profile: The aluminum cabinet typically features a slim and sleek design, making it easy to install and integrate into various environments without occupying much space.
- Modular Design: Facilitates easy assembly and disassembly, allowing for quick installation and maintenance. The modular approach also means that damaged parts can be replaced individually without affecting the whole display.
- Cooling System:
- Efficient Heat Dissipation: Aluminum’s natural thermal conductivity ensures efficient heat dissipation, which is crucial for maintaining the performance and longevity of the LEDs.
- Protection:
- IP Rating: Often, these cabinets come with a high IP (Ingress Protection) rating, ensuring protection against dust and water. This makes them suitable for both indoor and outdoor use, depending on the specific IP rating.
- Mounting Options:
- Versatile Mounting: The cabinet design typically includes various mounting options, allowing for wall mounting, hanging, or stacking depending on the installation requirements.
- Accessibility:
- Front/Rear Access: Some cabinets are designed for easy access to the LED modules from the front or rear, simplifying maintenance tasks such as module replacement or wiring checks.
- Weight:
- Lightweight: The use of aluminum makes the cabinet lightweight, which reduces the overall weight of large LED screens, making transportation and installation easier and more cost-effective.
Specification:
| Description | Technical Parameter | OS-AL-P5.9 |
| Panel | Panel size | 960mm(W)*960mm(H)*89,6mm(T) |
| Panel resolution | 162x162dots | |
| Pixel pitch | P5.9mm | |
| Pixel sensity | 28900dots/m² | |
| LED specification | National Star 1921 SMD | |
| Unit size | 960mm (W) 160mm (H) | |
| Unit resolution | W-162xH-27 dots | |
| Weight | 22 kg± 1 kg | |
| Material | Aluminum | |
| Maintenance mode | Pre/Rear maintenance | |
| Optics Parameter |
Best viewing distance | ≥ 5.9mm |
| Pixel configuration | LRIGIB | |
| Best viewing angle | 120° (H)/120° (V) | |
| Brightness of while balance | ≥6000cd/m² | |
| Color temperature | 3500-9300K | |
| Correcting | Luminance/Chromatic correction | |
| Deviation | ≤3% | |
| Homogeneity | ≥97% | |
| Electrical Parameter |
Max Power consumption | 850W/m² |
| Average power consumption | 280W/m² | |
| Drive type | 7-Jan | |
| Driving device | Constant Current driver | |
| Working voltage | AC200-240V | |
| Main Technical Parameter |
operating environment | Outdoor |
| Refresh frequency | 3840Hz | |
| Framing frequency | 50/60Hz | |
| IP Grade | IP65 front | |
| Storage temperature | -40℃~60℃℃ | |
| Working temperature | -20℃~50℃℃ | |
| Operation humidity | 10%~90% | |
| MTBF | ≥5000 hours | |
| Life span | ≥100000 hours | |
| Blind spot rate | ≤1/10000 |
