Description

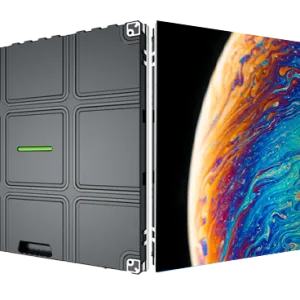

Our P2.5 Indoor LED Screen Cabinets with masking are designed to provide exceptional image clarity and uniform brightness for a variety of indoor applications. Featuring a fine pixel pitch of 2.5mm and advanced masking technology, these cabinets ensure a seamless display with vibrant colors and high contrast. Ideal for retail displays, corporate presentations, broadcast studios, and event backdrops, our P2.5 cabinets offer superior visual quality and reliability.

Key Features

• High Resolution: P2.5 pixel pitch for detailed and sharp images, suitable for close viewing distances.
• Advanced Masking: Ensures uniform brightness and enhanced contrast for stunning visuals.
• High Refresh Rate: 3840Hz refresh rate for flicker-free video playback and smooth transitions.
• Wide Viewing Angle: 160° horizontal and 140° vertical viewing angles for excellent visibility from various angles.
• Durable Construction: Made from high-quality materials for reliable indoor performance.

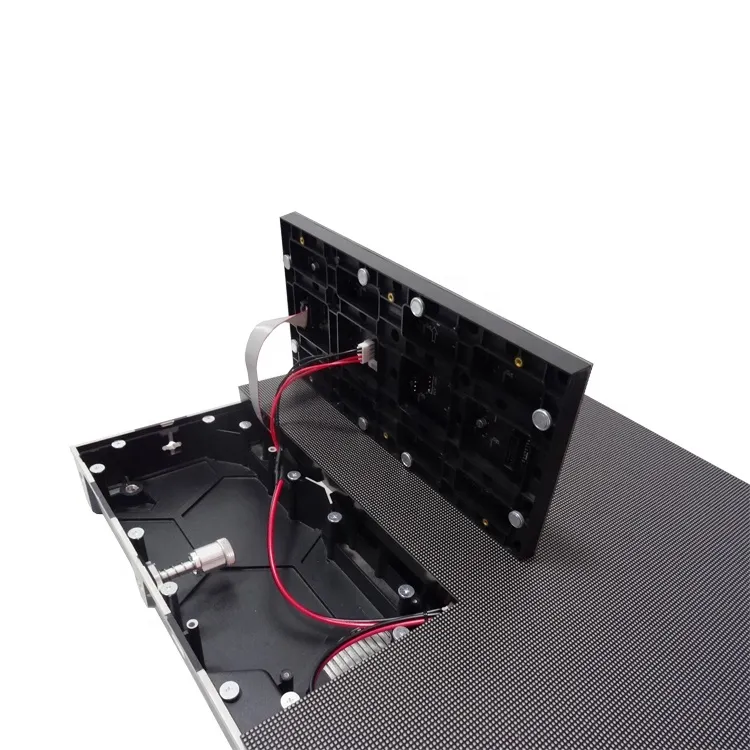

• Easy Maintenance: Front and rear serviceable design for quick and easy maintenance.
• Modular Design: Facilitates easy installation and scalability for larger displays.

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD1515	20mcd		140°/140°	620nm	25℃,5mA
Green		30mcd		140°/140°	530nm	25℃,2mA
Blue		5mcd		140°/140°	470nm	25℃,2mA
Module Parameter
Pixel Pitch			2.5mm
Pixel Configuration			SMD1515
Density			491,520pixels/㎡
Module Resolution			128pixel(L) * 64pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 15mm(D)
Driving Mode			Constant/43 Scan

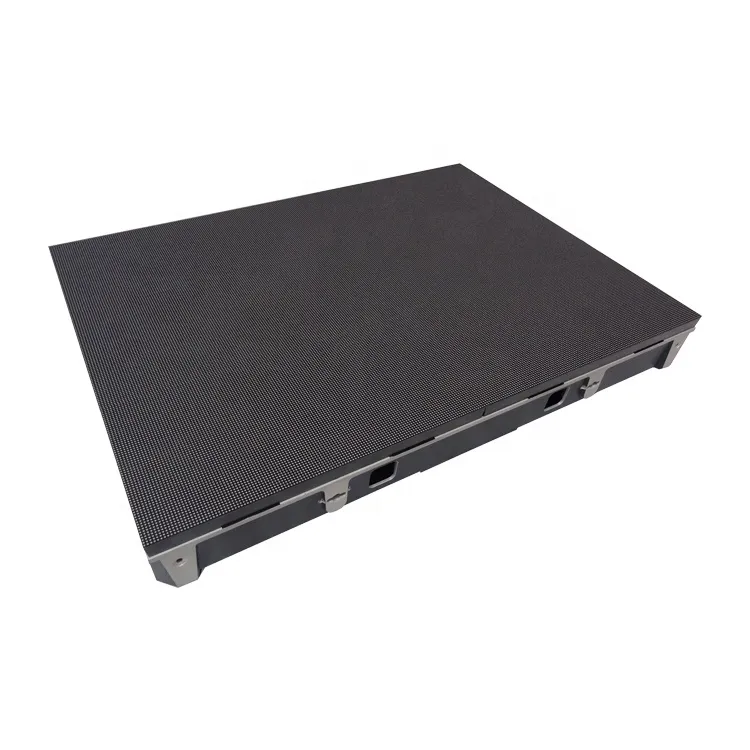

LED Cabinet
Module Quantity in a Cabinet			2(L) *3(H)

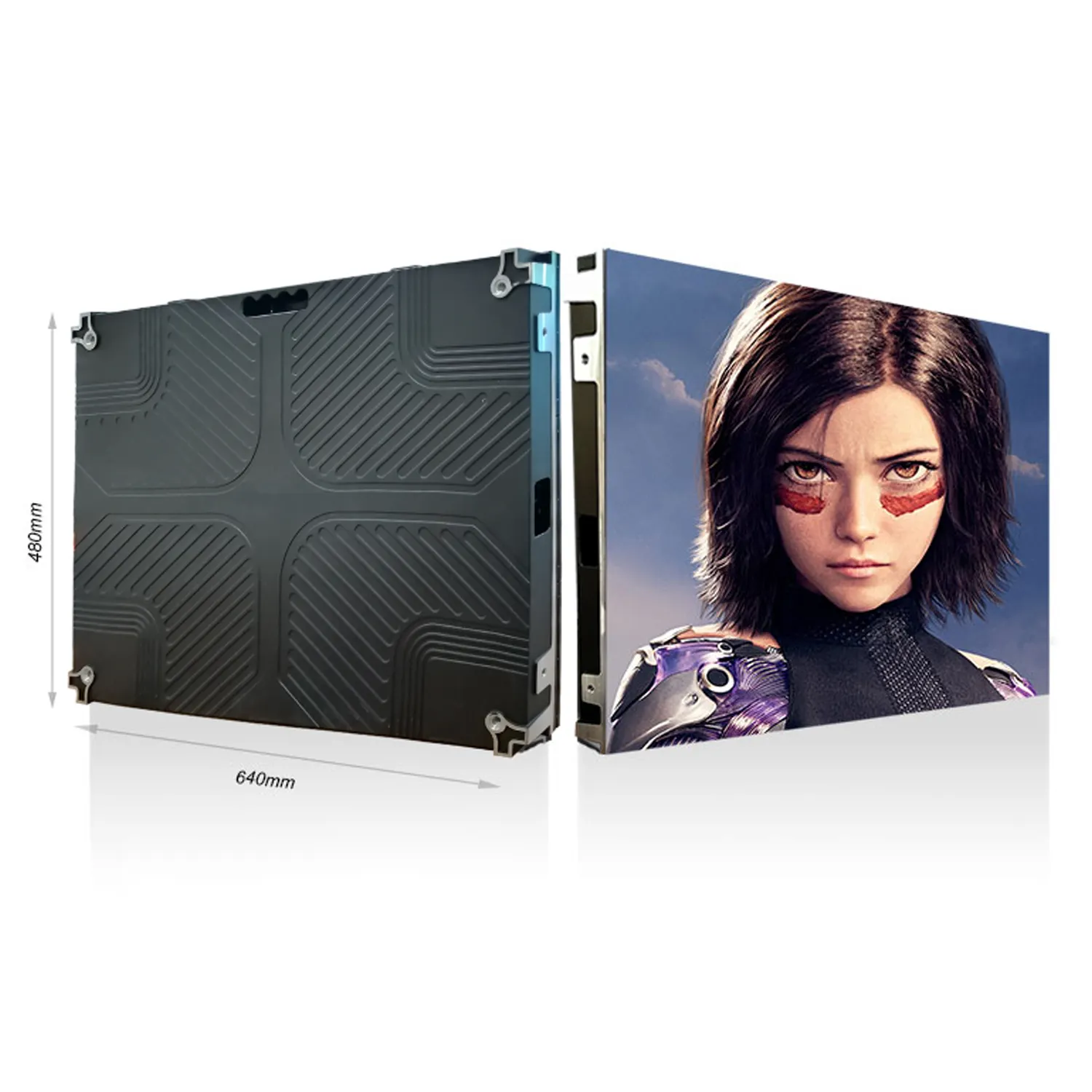

Cabinet Dimension			640（L）*480（H）* 90(D)mm
Cabinet Resolution			256 pixel(L) * 192 pixel(H)
Cabinet Material			Die-cast aluminum
Cabinet Weight			≈10KG
Electricity Parameter
Optical Ratings
Brightness			≥700 cd/㎡
Viewing Angle			140°(Horizontal); 140°(Vertical)
Best Viewing Distance			≥1.83m
Gray Grade			14 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			400 W/㎡
Avg. Power Consumption			300 W/㎡
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥3,840Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100M (Ethernet cable);
			20KM (Optical fiber cable)
Support VGA Mode			800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP43
