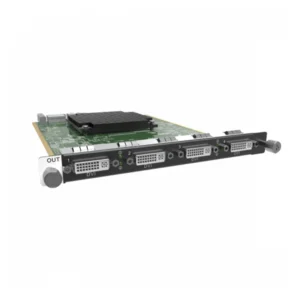

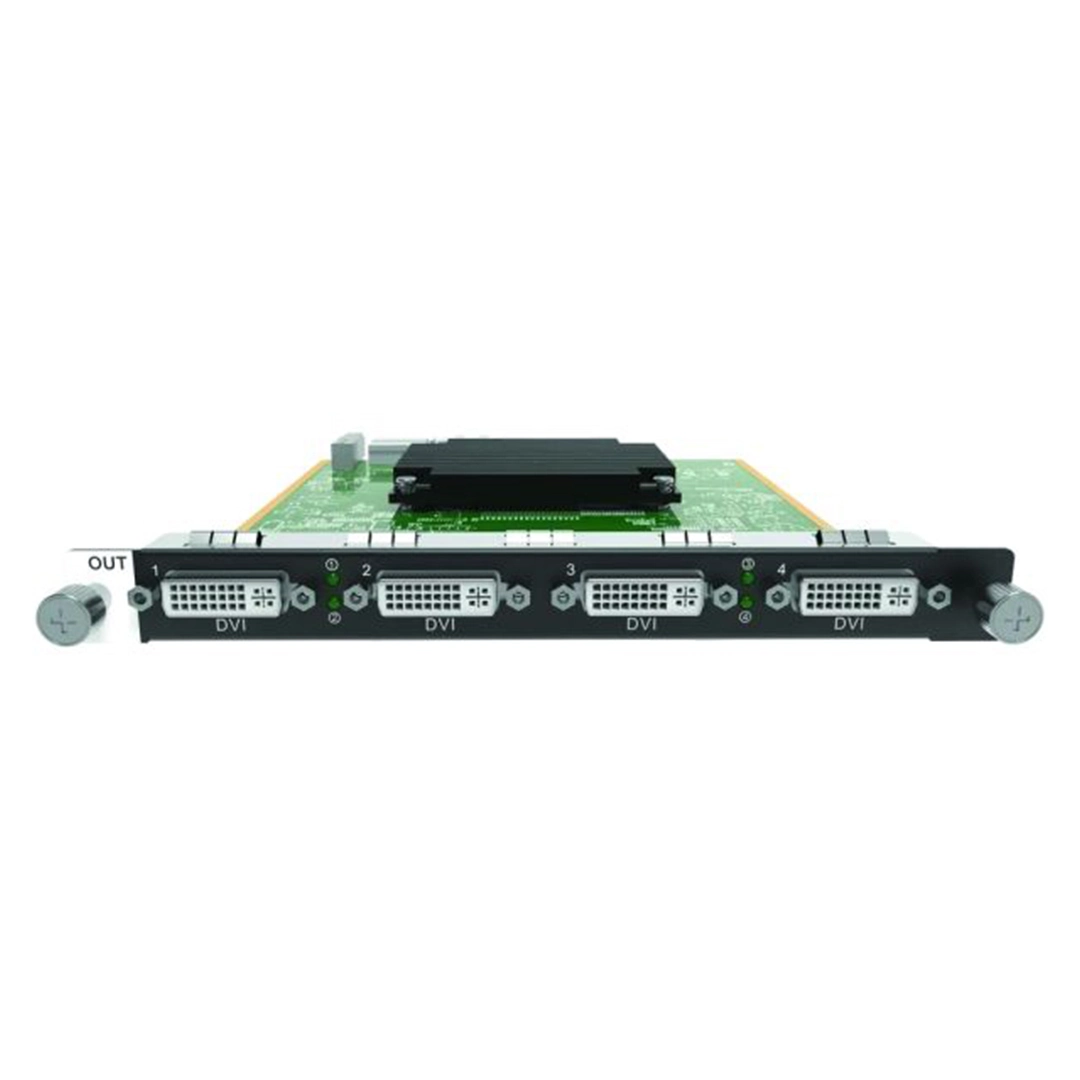

The NovaStar H Series 4x DVI Output Card is an advanced output module designed for use with NovaStar’s H Series video splicing processors, such as the H5, H9, and H15 models. This output card provides four DVI output interfaces, allowing for flexible and high-quality video output to multiple displays or LED panels. It is ideal for applications in live events, broadcasting studios, control rooms, and large-scale LED display systems where precise and synchronized video output is essential.

Key Features of the NovaStar H Series 4x DVI Output Card:

1. Four DVI Output Channels:
   • The card is equipped with four DVI output ports, enabling connection to multiple LED receiving cards, monitors, or other display devices.
   • Supports simultaneous video output across the four channels, making it perfect for setups that require multiple screens or sections of an LED wall to be controlled independently or as part of a larger display.
2. High Resolution Support:
   • Each DVI output channel supports up to 1920 x 1080 @ 60Hz resolution, ensuring high-definition output for clear and detailed visuals.
   • Suitable for high-quality video displays and applications that demand precise pixel mapping and image clarity, such as control rooms, theaters, and digital signage.
3. Seamless Integration with H Series Splicers:
   • Designed to work seamlessly with NovaStar’s H Series splicers (H5, H9, H15), the card integrates into the system, providing synchronized and high-quality video output.
   • Works with the advanced video processing features of the H Series, including scaling, multi-window display, and edge blending, allowing for dynamic and flexible display setups.
4. Multi-Channel Display Control:
   • The 4x DVI output card supports multi-channel control, enabling operators to manage different video signals across separate screens or LED sections, providing versatility in content presentation.
   • Allows for the creation of complex video walls or LED displays with precise control over each output channel, ensuring a synchronized and cohesive visual experience.
5. Reliable and Stable Performance:
   • Designed for professional use, the DVI output card ensures stable and consistent video output, even in demanding environments like live events and broadcast studios.
   • Supports redundancy options when used in combination with other H Series cards, providing a safeguard against signal loss or interruption, which is crucial in mission-critical setups.
6. Easy Configuration via NovaStar Software:
   • Configurable through NovaStar’s control software (NovaLCT or V-Can), allowing users to set up output resolutions, color formats, and other display settings.
   • The software provides intuitive control over output mapping and synchronization, ensuring a quick and efficient setup process for complex display configurations.

Applications:

• Live Events and Concerts: Ideal for controlling large LED screens and video walls at live events, ensuring high-definition video output and seamless synchronization across multiple sections.
• Broadcasting Studios: Suitable for studio environments that require multiple monitors or screens to display high-quality video feeds in sync.
• Control Rooms: Useful for control room setups where multiple screens display different video sources, providing clear and accurate visuals for monitoring and management.
• Theaters and Cinemas: Perfect for use in theaters or cinemas where multi-screen setups require synchronized video output and high resolution.

Installation and Setup:

1. Install the 4x DVI Output Card:
   • Insert the DVI output card into the designated slot of the H Series processor (H5, H9, H15) according to NovaStar’s installation instructions.
2. Connect Display Devices:
   • Connect the DVI outputs to LED receiving cards, monitors, or other display devices using DVI cables. Ensure secure connections for stable performance.
3. Configure Using NovaLCT or V-Can Software:
   • Use NovaLCT or V-Can software to configure the output settings. Adjust resolution, scaling options, and pixel mapping to match the display requirements.
4. Monitor and Adjust Output:
   • Monitor the performance of the DVI outputs via the software, making real-time adjustments as needed to ensure synchronization and high-quality output.
