Novastar H Series 2*DP 1.1 Input Card

2355 AED

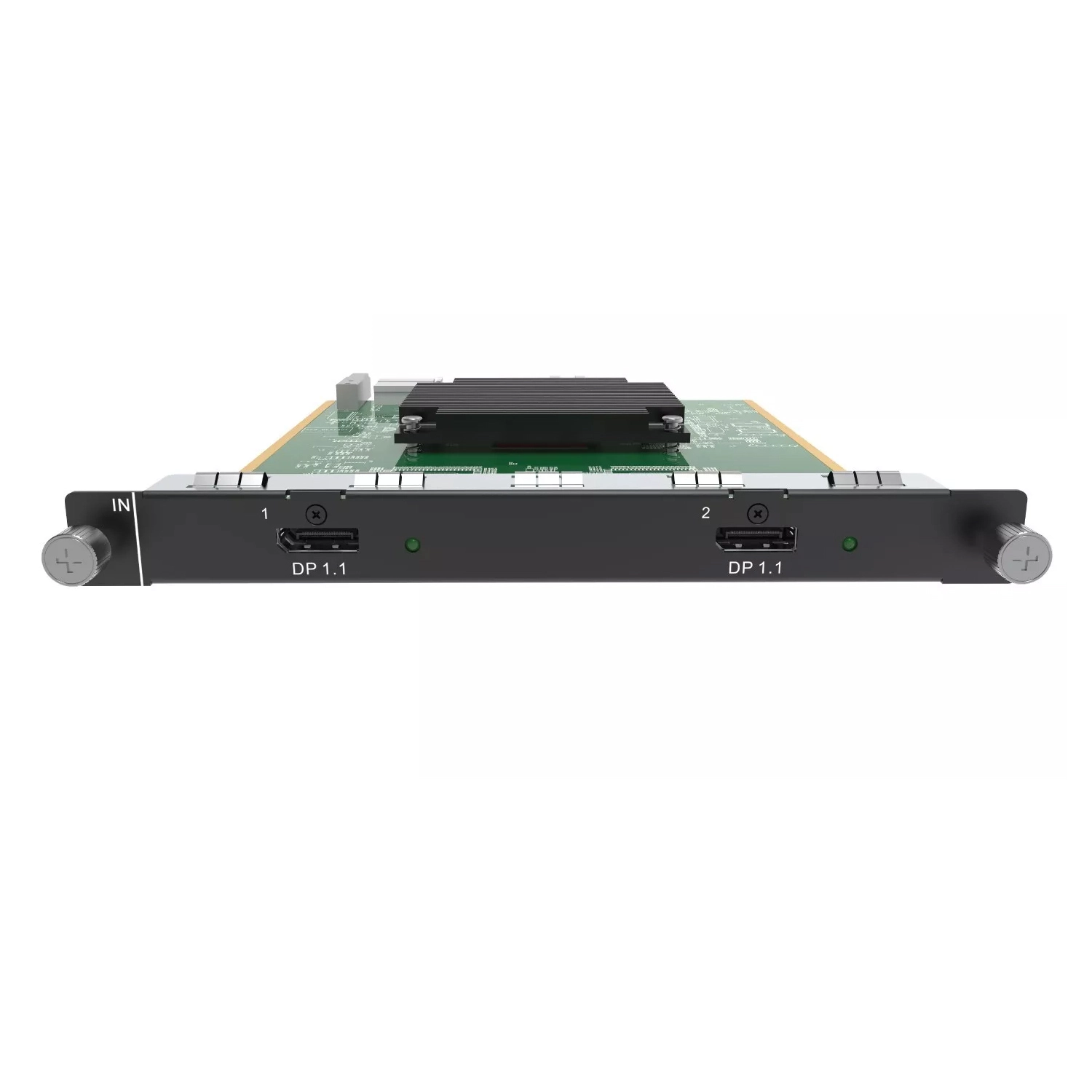

The Novastar H Series 2x DP 1.1 Input Card is designed for use with LED display screens, providing two DisplayPort (DP) 1.1 inputs. This allows for the connection of up to two digital video sources, such as computers, media players, and other devices.

Supporting the DP 1.1 standard, this input card can handle resolutions up to 4K at a 30Hz refresh rate on both DP inputs, making it suitable for high-quality digital video playback in professional settings like control rooms and broadcasting studios.

Additionally, the Novastar H Series 2x DP 1.1 Input Card offers advanced image processing capabilities, including support for High Dynamic Range (HDR) imaging technology. This ensures enhanced color accuracy and contrast for more vibrant visuals.

Key features of the Novastar H Series 2x DP 1.1 Input Card includ

Fast Response to serve you better

  • Onsite visit upon appointment
  • Competitive price from Factory outlet
  • Local Warranty for Quality assurance

The Novastar H Series 2x DP 1.1 Input Card offers a versatile solution for connecting multiple digital video sources to LED display screens. With support for high-resolution video playback and advanced image processing capabilities, it is an ideal choice for professional applications that demand high-quality digital video playback.

Product Information:

  • Supports: DP 1.1
  • Compliance: HDCP 1.3
  • Indicators: Two status LEDs

The H Series 2x DP 1.1 Input Card is designed for use with the H Series H2/H5/H9/H15 Video Wall Splicers. It is compliant with HDCP 1.3 standards and can accept two DP 1.1 signals, supporting both 8-bit and 10-bit video signals. Each connector can handle resolutions up to 3840×2160 @ 30 Hz or 3840×1080 @ 60 Hz. Two status LEDs indicate the validity of the input signal.

Technical Data:

  • DP1.1 Inputs: 2
  • Input Slots: 1
  • Maximum Input Resolution: 3840 x 1080

4o

Brand

NOVASTAR

NovaStar controllers are widely used in the LED display industry for their reliability and advanced features. They provide solutions for various display types, from small indoor screens to large outdoor displays. Here's a detailed overview of NovaStar controllers:

1. Types of NovaStar Controllers

  • Synchronous Controllers: Used for real-time data display, requiring a constant connection to a source (like a computer).
    • Examples: NovaStar VX4S, NovaStar MCTRL660, NovaStar MCTRL4K
  • Asynchronous Controllers: Store content locally and display it without a continuous connection to a computer.
    • Examples: NovaStar Taurus Series (e.g., TB3, TB6), NovaStar A8S

2. Setup and Installation

  • Hardware Installation:
    • Connect the controller to the LED display.
    • Ensure power supply connections are secure.
    • Connect data cables (e.g., Ethernet or fiber optic cables) from the controller to the LED modules.
  • Software Installation:
    • Install NovaLCT or ViPlex (for asynchronous controllers) on your computer.
    • Ensure your computer and the controller are connected to the same network for configuration.

3. Programming and Content Management

  • Content Creation:
    • Use software like NovaLCT for synchronous controllers or ViPlex for asynchronous controllers to create and manage content.
    • Design your content layout, including text, images, videos, and other media.
  • Content Upload:
    • For synchronous controllers, content is streamed in real-time from the connected computer.
    • For asynchronous controllers, upload content via USB, Wi-Fi, or LAN.
  • Scheduling:
    • Set schedules for content playback through the software to automate display changes.

4. Troubleshooting Common Issues

  • No Display:
    • Verify all connections are secure and power is supplied.
    • Check the configuration settings in NovaLCT or ViPlex.
