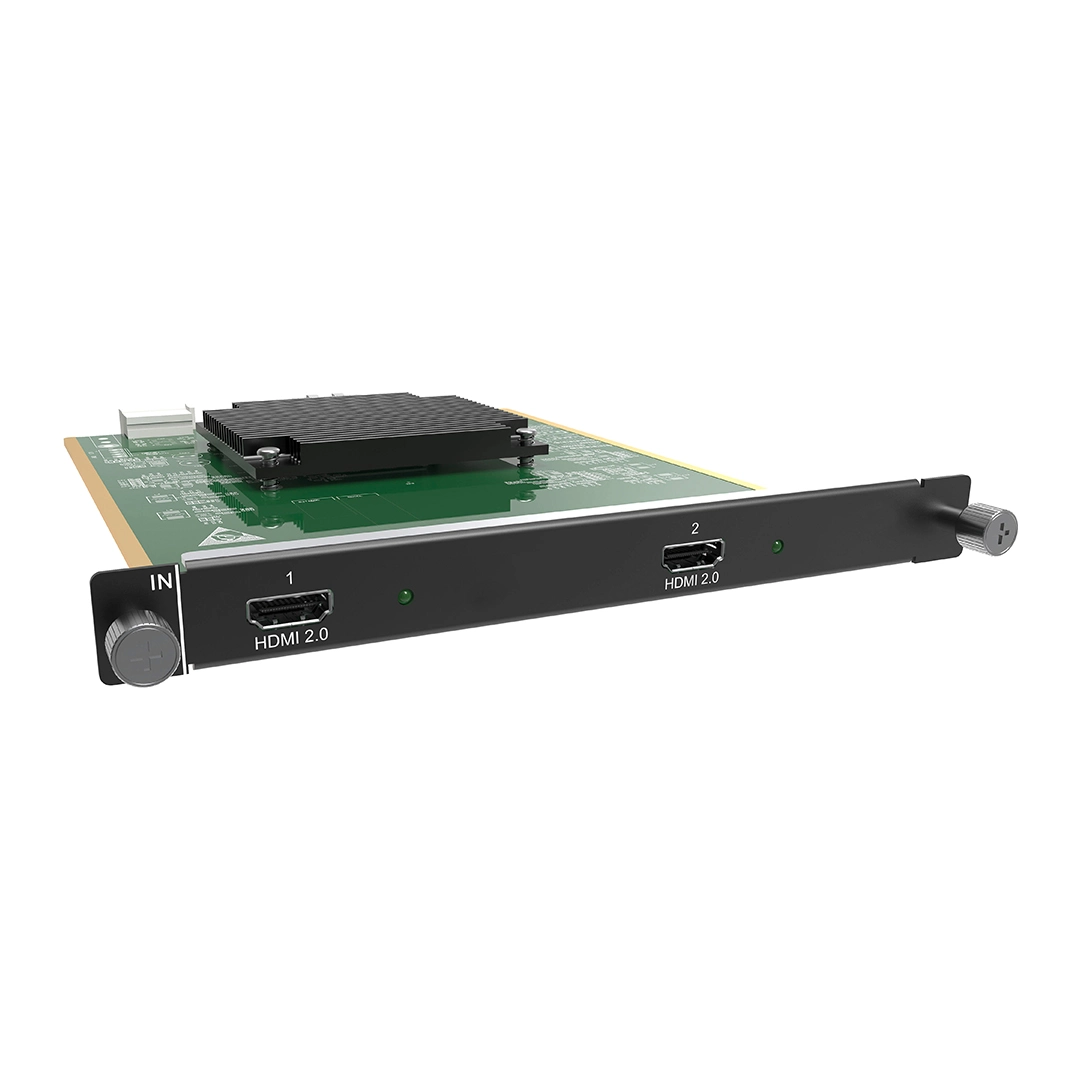

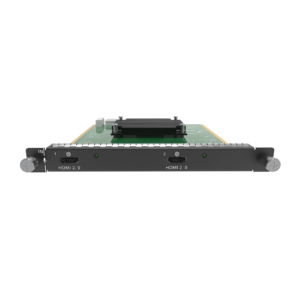

The NovaStar H Series 2x HDMI 2.0*2 Input Card is an advanced input module designed for NovaStar’s H Series video splicing processors, including models like the H5, H9, and H15. This card features two sets of dual HDMI 2.0 inputs (totaling four HDMI 2.0 ports), allowing for the simultaneous input of multiple high-resolution video signals, making it ideal for complex, multi-screen video applications such as live events, broadcasting studios, control rooms, and large-scale LED displays.

Key Features of the NovaStar H Series 2x HDMI 2.0*2 Input Card:

1. Dual HDMI 2.0 Inputs per Set (Four HDMI Ports):
   • The card offers two sets of dual HDMI 2.0 inputs, providing four total HDMI 2.0 ports capable of handling multiple high-resolution video sources simultaneously.
   • Each HDMI 2.0 input supports video signals up to 4K@60Hz (3840 x 2160) resolution, allowing for ultra-clear and detailed visuals.
2. 4K Resolution and HDR Support:
   • Each HDMI 2.0 input supports 4K resolution with HDR (High Dynamic Range), ensuring high-quality, vibrant, and high-contrast visuals suitable for professional-grade LED displays and video walls.
   • With support for HDR and 10-bit color depth, the card provides a wide color gamut and accurate color representation, which is essential for high-performance visual applications.
3. High Bandwidth and Deep Color Capability:
   • The card supports 4:4:4 chroma subsampling, ensuring precise and accurate color representation, making it suitable for professional video applications requiring sharp, vivid images.
   • With high bandwidth, the card can handle the large data rates required for high-definition, high-frame-rate video, ensuring smooth and uninterrupted visual output.
4. Seamless Integration with H Series Splicers:
   • Designed to work seamlessly with NovaStar’s H Series processors (H5, H9, H15), the input card integrates easily into the system, utilizing the advanced processing features of these splicers, such as multi-window display, scaling, and edge blending.
   • The card ensures that the high-resolution signals from multiple sources are processed with minimal latency, maintaining clarity and synchronization across different screens or LED panels.
5. Versatile Input Compatibility and Secure Transmission:
   • Compatible with a variety of HDMI formats and supports HDCP (High-bandwidth Digital Content Protection), enabling secure transmission of copyright-protected content, making it suitable for professional environments where secure and protected content display is necessary.
   • Capable of supporting different resolutions and refresh rates, the card ensures compatibility with a wide array of devices and source types, such as computers, media players, and broadcasting equipment.
6. Configuration and Monitoring via NovaStar Software:
   • Configurable using NovaStar’s control software (NovaLCT or V-Can), enabling users to manage the input settings, adjust scaling options, and set pixel mapping according to their specific display needs.
   • The software provides real-time monitoring and management capabilities, allowing operators to track the status of each input and make adjustments to maintain optimal visual performance.

Applications:

• Live Events and Concerts: Ideal for managing multiple video feeds from cameras and media players simultaneously, delivering synchronized and ultra-clear visuals for large LED screens and video walls.
• Broadcast Studios: Perfect for studios that require the input of multiple high-definition content sources for live broadcasts or recorded programs.
• Control Rooms: Suitable for control rooms where multiple video sources must be displayed simultaneously on large monitors or video walls, ensuring clear and accurate visuals for effective monitoring.
• Theaters and Cinemas: Ideal for cinematic setups requiring multiple 4K resolution inputs with HDR capabilities, ensuring an immersive and high-quality viewing experience.

Installation and Setup:

1. Install the 2x HDMI 2.0*2 Input Card:
   • Insert the card into the designated slot within the H Series processor (H5, H9, H15) following NovaStar’s installation guidelines.
2. Connect Video Sources:
   • Connect your video sources to the four HDMI 2.0 ports using compatible cables. Ensure all connections are secure for stable and high-performance input.
3. Configure Input Settings via NovaLCT or V-Can Software:
   • Use NovaLCT or V-Can software to set up the input card, adjusting resolution, scaling, and pixel mapping based on the system requirements. Set each input independently or configure them as needed for synchronized display.
4. Monitor and Adjust Input Performance:
   • Monitor the input feeds through the software, ensuring synchronization and high-quality visuals across the connected displays. Make real-time adjustments as necessary to optimize display performance.
