Novastar CVT4K-M LED Screen Video Fiber Converter

7200 AED

Guarantee:

We ensure that all products are thoroughly tested before shipping. While we take every precaution, we cannot control the entire shipping process, and damage during transit can occur. In such cases, we are committed to working closely and amicably with buyers to find a satisfactory solution. All items come with a one-year warranty.

Fast Response to serve you better

  • Onsite visit upon appointment
  • Competitive price from Factory outlet
  • Local Warranty for Quality assurance

Description:

Additional Information:

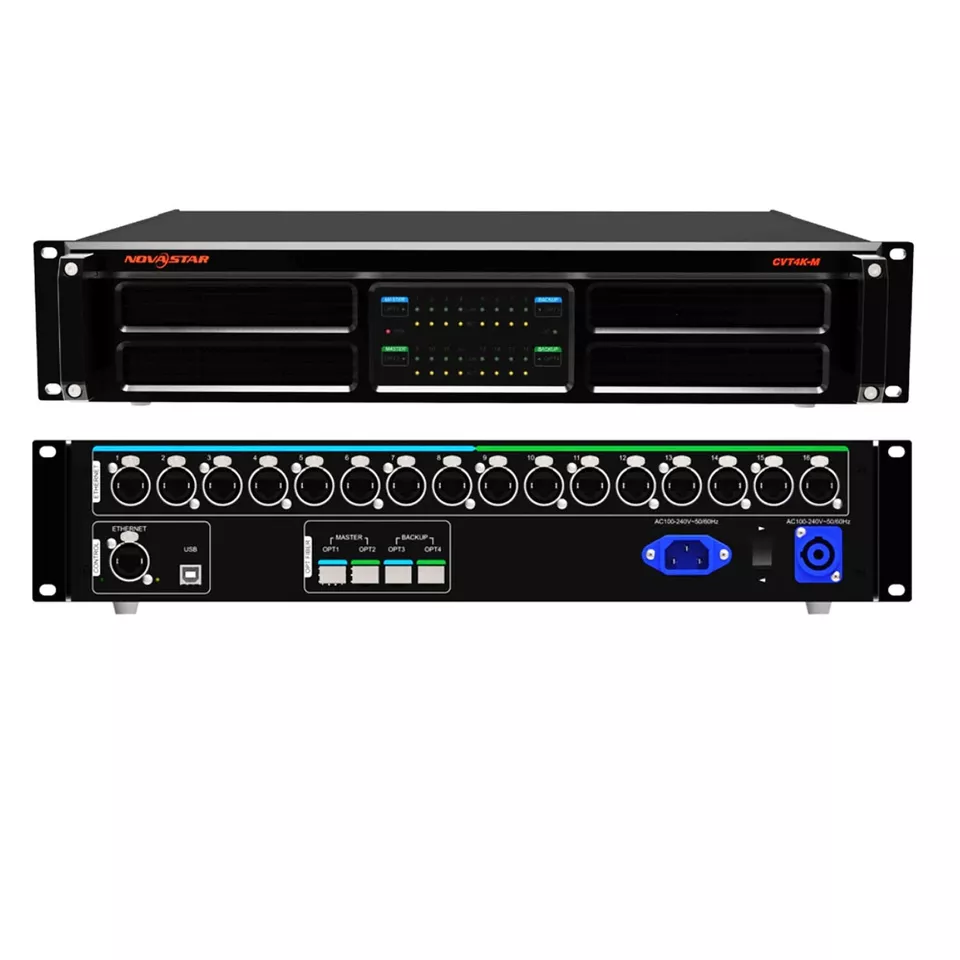

The Novastar CVT4K-M LED Screen Video Fiber Converter offers high-performance signal conversion. It utilizes photoelectric technology to transmit signals over both optical fiber and twisted pair cables, ensuring stable, long-distance transmission with minimal interference. The CVT4K-M is designed for ease of use, simplifying terminal device connections and onsite wiring.

Features:

  • Product Type: Gigabit Ethernet Fiber Converter
  • Interface Type: 4 × LC, 16 × RJ-45 (Neutrik)
  • Wavelength: 850 nm
  • Transmission Distance: Up to 300 meters
  • Control Methods: USB, TCP/IP
  • Supply Voltage: AC 100-240V, 50/60Hz
  • Certifications: CE, FCC, UL & CUL, EAC, CB, IC

Key Features:

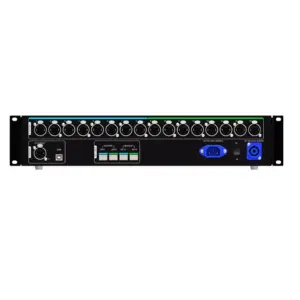

  • Supports 16 Neutrik Ethernet inputs and outputs
  • Supports 4 multi-mode twin-core optical fiber connections with LC connectors, including 2 master and 2 backup channels
  • Includes dual-power redundancy for enhanced stability and reliability
  • Offers 2 types of power connectors (3-pin power socket and PowerCON) to meet various customer needs

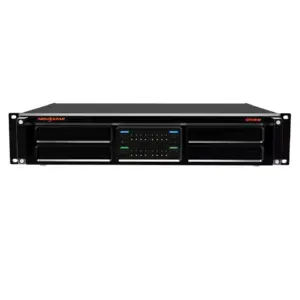

  • Equipped with front panel indicators for clear status display
  • Provides USB and Ethernet control connectors for flexible and easy integration with control computers
    Weight: 12.5 kg



4o mini

Brand

NOVASTAR

NovaStar controllers are widely used in the LED display industry for their reliability and advanced features. They provide solutions for various display types, from small indoor screens to large outdoor displays. Here's a detailed overview of NovaStar controllers:

1. Types of NovaStar Controllers

  • Synchronous Controllers: Used for real-time data display, requiring a constant connection to a source (like a computer).
    • Examples: NovaStar VX4S, NovaStar MCTRL660, NovaStar MCTRL4K
  • Asynchronous Controllers: Store content locally and display it without a continuous connection to a computer.
    • Examples: NovaStar Taurus Series (e.g., TB3, TB6), NovaStar A8S

2. Setup and Installation

  • Hardware Installation:
    • Connect the controller to the LED display.
    • Ensure power supply connections are secure.
    • Connect data cables (e.g., Ethernet or fiber optic cables) from the controller to the LED modules.
  • Software Installation:
    • Install NovaLCT or ViPlex (for asynchronous controllers) on your computer.
    • Ensure your computer and the controller are connected to the same network for configuration.

3. Programming and Content Management

  • Content Creation:
    • Use software like NovaLCT for synchronous controllers or ViPlex for asynchronous controllers to create and manage content.
    • Design your content layout, including text, images, videos, and other media.
  • Content Upload:
    • For synchronous controllers, content is streamed in real-time from the connected computer.
    • For asynchronous controllers, upload content via USB, Wi-Fi, or LAN.
  • Scheduling:
    • Set schedules for content playback through the software to automate display changes.

4. Troubleshooting Common Issues

  • No Display:
    • Verify all connections are secure and power is supplied.
    • Check the configuration settings in NovaLCT or ViPlex.
