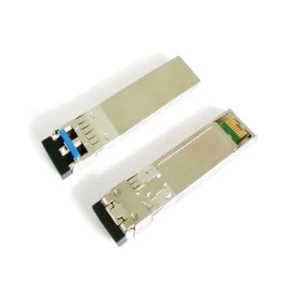

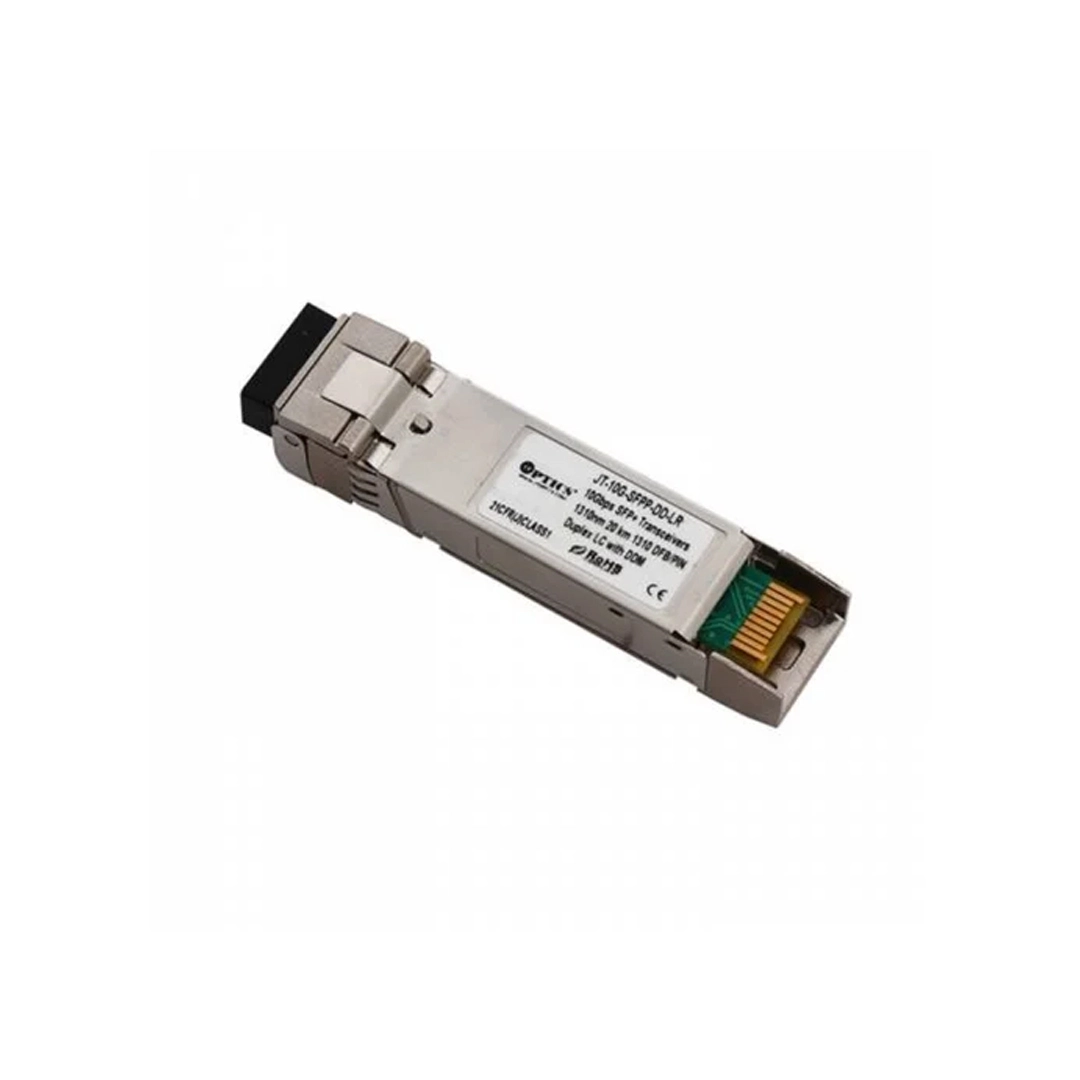

The Novastar 10G SFP Module-S Fiber Module is a high-speed transceiver module designed for use in Novastar’s LED display systems. It is compatible with single-mode fiber optics and allows for 10 Gbps data transmission over long distances, making it ideal for large-scale LED installations where high bandwidth and stable signal transmission are essential.

Key Features of the Novastar 10G SFP Module-S:

1. High-Speed Transmission:
   • Supports data transmission speeds of up to 10 Gbps, ensuring that high-resolution video data is transmitted quickly and without latency.
   • The high-speed capability is ideal for large LED displays and high-definition video walls that require fast and reliable data transfer.
2. Single-Mode Fiber Compatibility:
   • Designed specifically for single-mode fiber applications, the module can transmit data over distances of up to 10 km or more, depending on the specific fiber type and system configuration.
   • SC optical connectors are typically used, which are standard in single-mode fiber setups, providing secure and reliable connections.
3. Hot-Pluggable SFP+ Design:
   • The module is hot-pluggable, meaning it can be inserted or removed from the switch or device without shutting down the system. This feature simplifies installation and maintenance, making it suitable for dynamic setups.
   • The SFP+ (Small Form-Factor Pluggable Plus) form factor is compact and allows for easy integration into a wide range of Novastar LED controllers, switches, and converters.
4. Compatibility:
   • Works seamlessly with Novastar products that support SFP+ ports, such as the CVT320 series fiber converters and MCTRL series controllers.
   • Provides a flexible and scalable solution for upgrading existing systems or expanding the capabilities of current LED setups.
5. Low Power Consumption:
   • The module is energy-efficient, designed to consume minimal power while maintaining high data transfer rates, reducing overall system energy consumption.
   • Typically, it operates at low temperatures, which helps maintain system stability and longevity.
6. Reliability and Stability:
   • Built for reliable, stable performance over long distances, ensuring that video data maintains high integrity with minimal signal degradation or loss.
   • The robust design makes it suitable for use in a variety of environments, including outdoor and industrial settings where stable performance is critical.

Applications:

• Large Outdoor Billboards and Digital Signage: Ensures fast, reliable data transfer between the control center and LED display over long distances, ideal for installations where the screen and control unit are far apart.
• Stadium and Arena Displays: Suitable for high-resolution video walls and large-scale displays in venues that require long-distance and high-bandwidth data transmission.
• Rental and Staging Events: Ideal for temporary setups where rapid installation, high-speed transmission, and long-distance capabilities are necessary to ensure smooth operation.

Setting Up the Novastar 10G SFP Module-S:

1. Insert the Module:
   • Plug the 10G SFP Module-S into the compatible SFP+ port of a Novastar device, such as a fiber converter (e.g., CVT320) or controller (e.g., MCTRL series).
   • Ensure the module clicks into place securely.
2. Connect the Fiber Cable:
   • Connect a single-mode fiber optic cable to the SFP module using an SC connector, and link the other end to the corresponding receiving device or network switch.
3. System Configuration:
   • Typically, the SFP module functions in a plug-and-play manner, but using Novastar’s control software (e.g., NovaLCT) can help manage system diagnostics, monitor connection quality, and optimize performance.
