H Series 20 x RJ45 Output Sending Card

Leave a Comment / By /

H Series 20 x RJ45 Output Sending Card

4023 AED

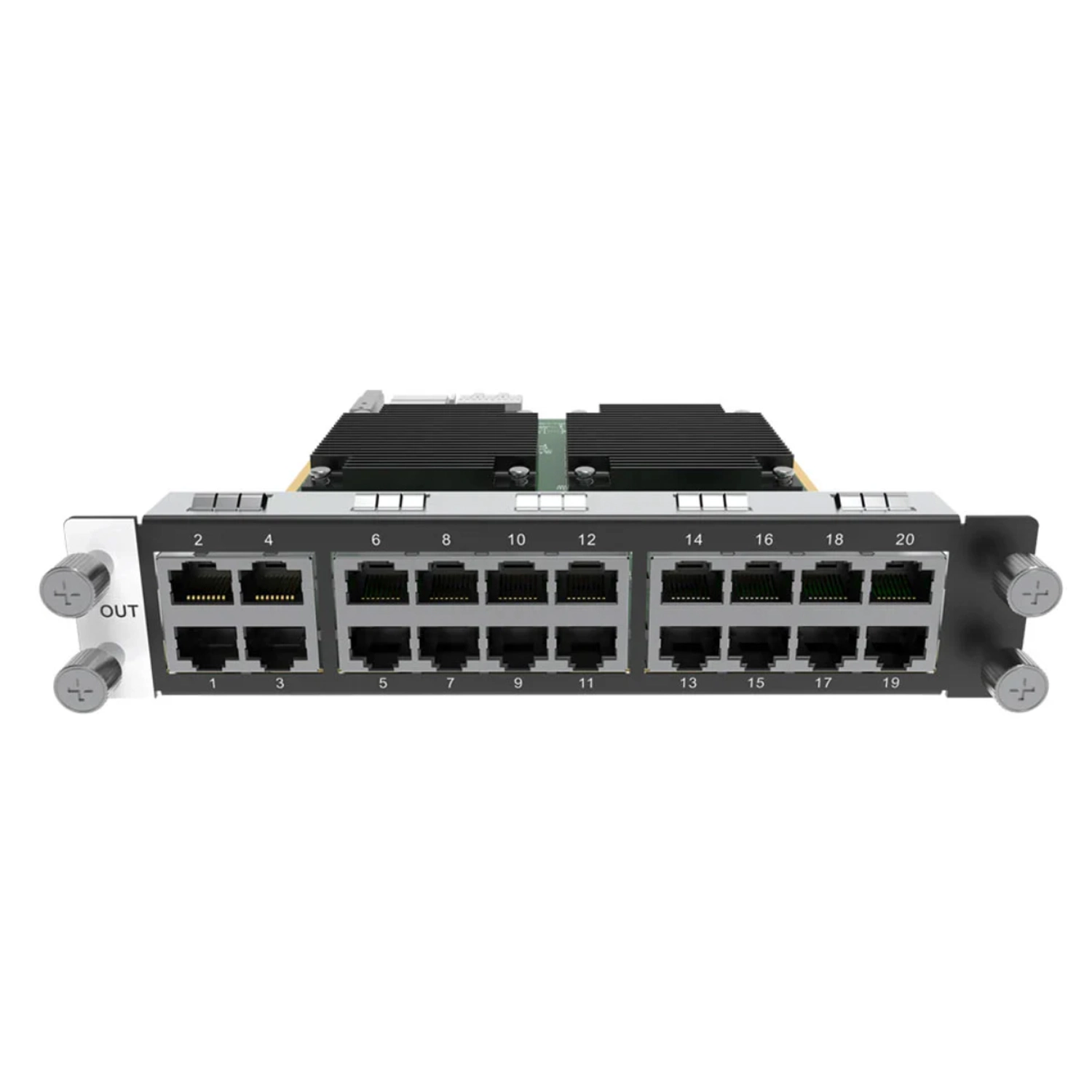

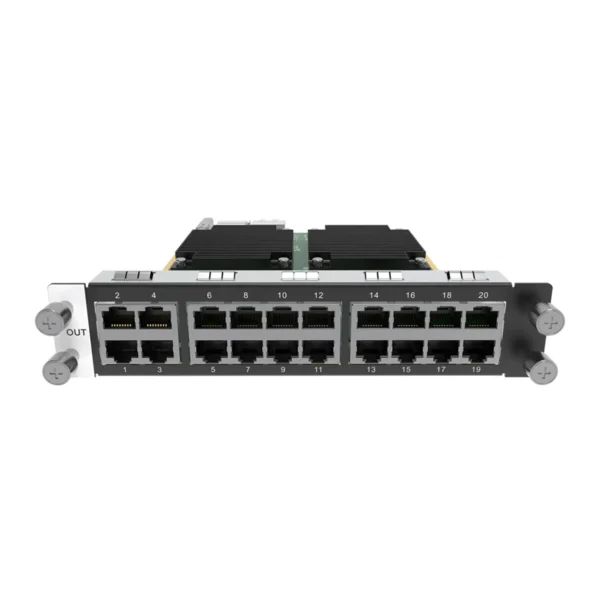

The H Series 20x RJ45 Sending Card is designed for use with H Series H2, H5, H9, and H15 Video Wall Splicers, providing 4K capabilities. It features 20 RJ45 Gigabit Ethernet outputs, with each output capable of supporting up to 650,000 pixels at 8-bit color depth or 320,000 pixels at 10-bit color depth. Additionally, each output can be configured independently as a main or backup port.

Fast Response to serve you better

  • Onsite visit upon appointment
  • Competitive price from Factory outlet
  • Local Warranty for Quality assurance

Key Features:

  • 4K Sending Card: Supports high-definition video wall splicing.
  • Color Depth: Compatible with 8- and 10-bit color depth.
  • Pixel Capacity: Handles up to 13,000,000 pixels.

Technical Specifications:

  • Outputs:
    • Main Outputs: 20
    • Ethernet Speed (LED Screen): 1 Gbit/s
    • Output Slots: 2

Additional Features:

  • Scaling Function: Yes

Control and Programming:

  • Maximum Loading Capacity: 13 Mpx
  • Greyscale Processing: 10-bit

Electrical Specifications and Connections:

  • Data Connector Out: RJ45

Mechanical Specifications:

  • Weight: 0.8 kg
  • IP Rating: IP20 (indoor use only)
  • Color: Black

Brand

NOVASTAR

NovaStar controllers are widely used in the LED display industry for their reliability and advanced features. They provide solutions for various display types, from small indoor screens to large outdoor displays. Here's a detailed overview of NovaStar controllers:

1. Types of NovaStar Controllers

  • Synchronous Controllers: Used for real-time data display, requiring a constant connection to a source (like a computer).
    • Examples: NovaStar VX4S, NovaStar MCTRL660, NovaStar MCTRL4K
  • Asynchronous Controllers: Store content locally and display it without a continuous connection to a computer.
    • Examples: NovaStar Taurus Series (e.g., TB3, TB6), NovaStar A8S

2. Setup and Installation

  • Hardware Installation:
    • Connect the controller to the LED display.
    • Ensure power supply connections are secure.
    • Connect data cables (e.g., Ethernet or fiber optic cables) from the controller to the LED modules.
  • Software Installation:
    • Install NovaLCT or ViPlex (for asynchronous controllers) on your computer.
    • Ensure your computer and the controller are connected to the same network for configuration.

3. Programming and Content Management

  • Content Creation:
    • Use software like NovaLCT for synchronous controllers or ViPlex for asynchronous controllers to create and manage content.
    • Design your content layout, including text, images, videos, and other media.
  • Content Upload:
    • For synchronous controllers, content is streamed in real-time from the connected computer.
    • For asynchronous controllers, upload content via USB, Wi-Fi, or LAN.
  • Scheduling:
    • Set schedules for content playback through the software to automate display changes.

4. Troubleshooting Common Issues

  • No Display:
    • Verify all connections are secure and power is supplied.
    • Check the configuration settings in NovaLCT or ViPlex.
