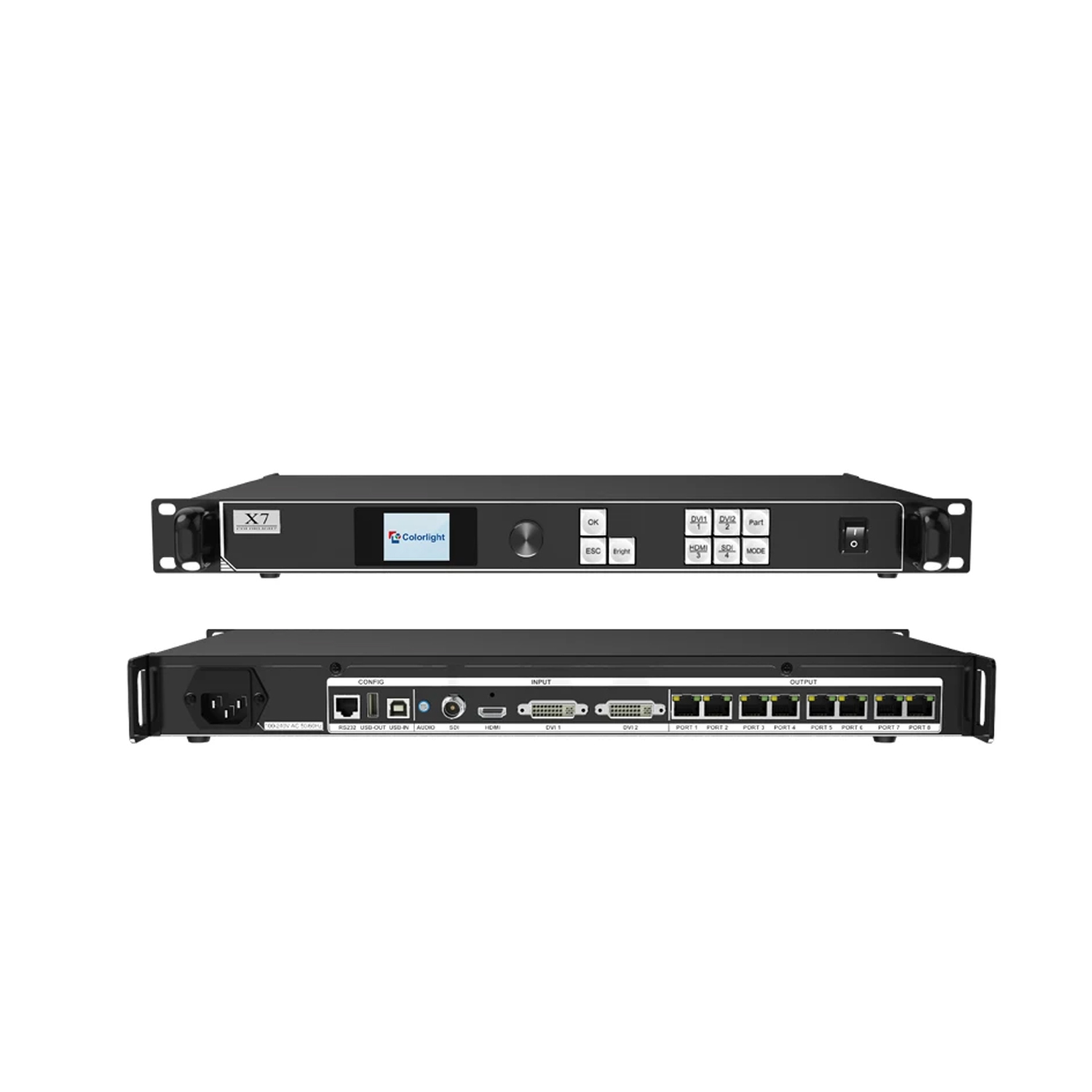

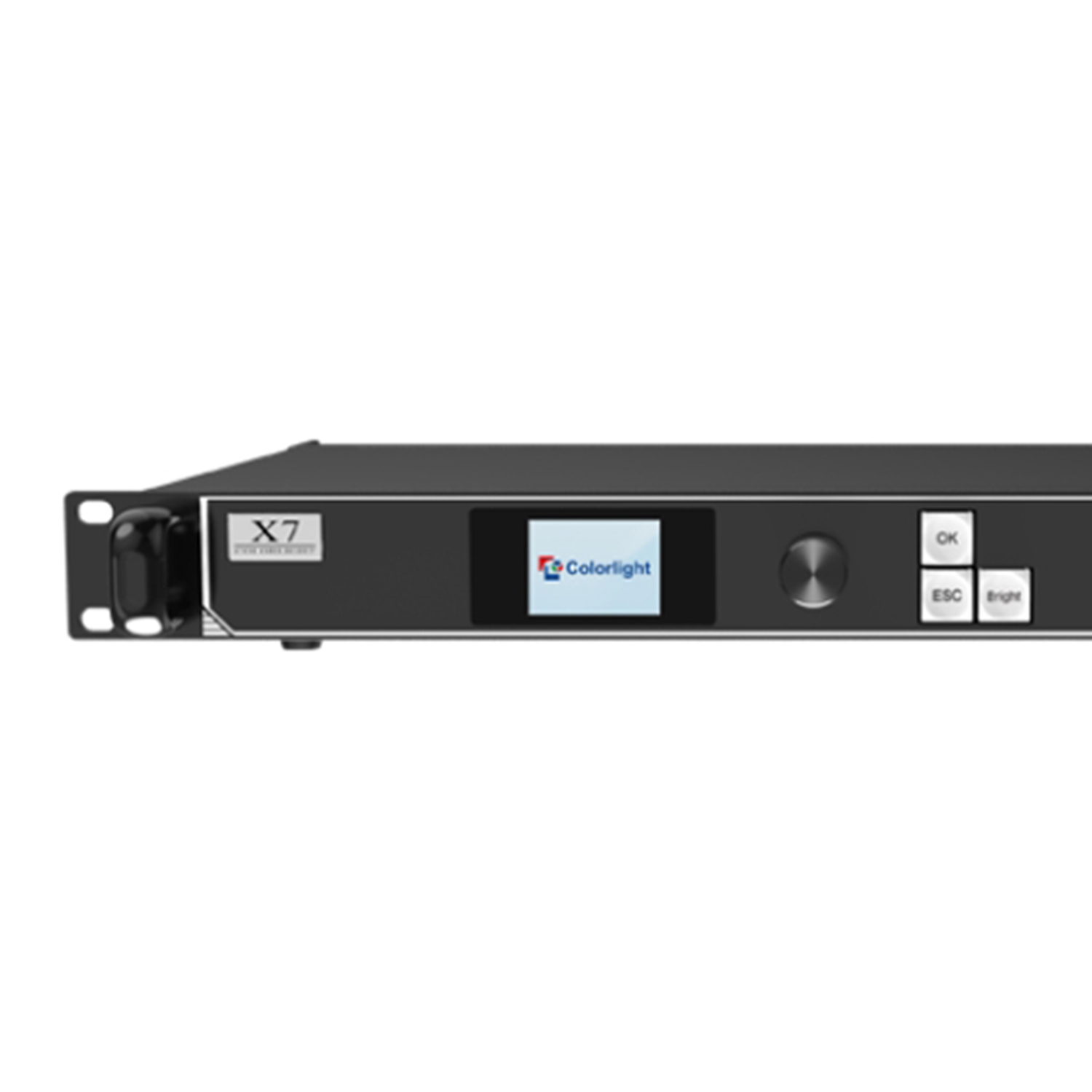

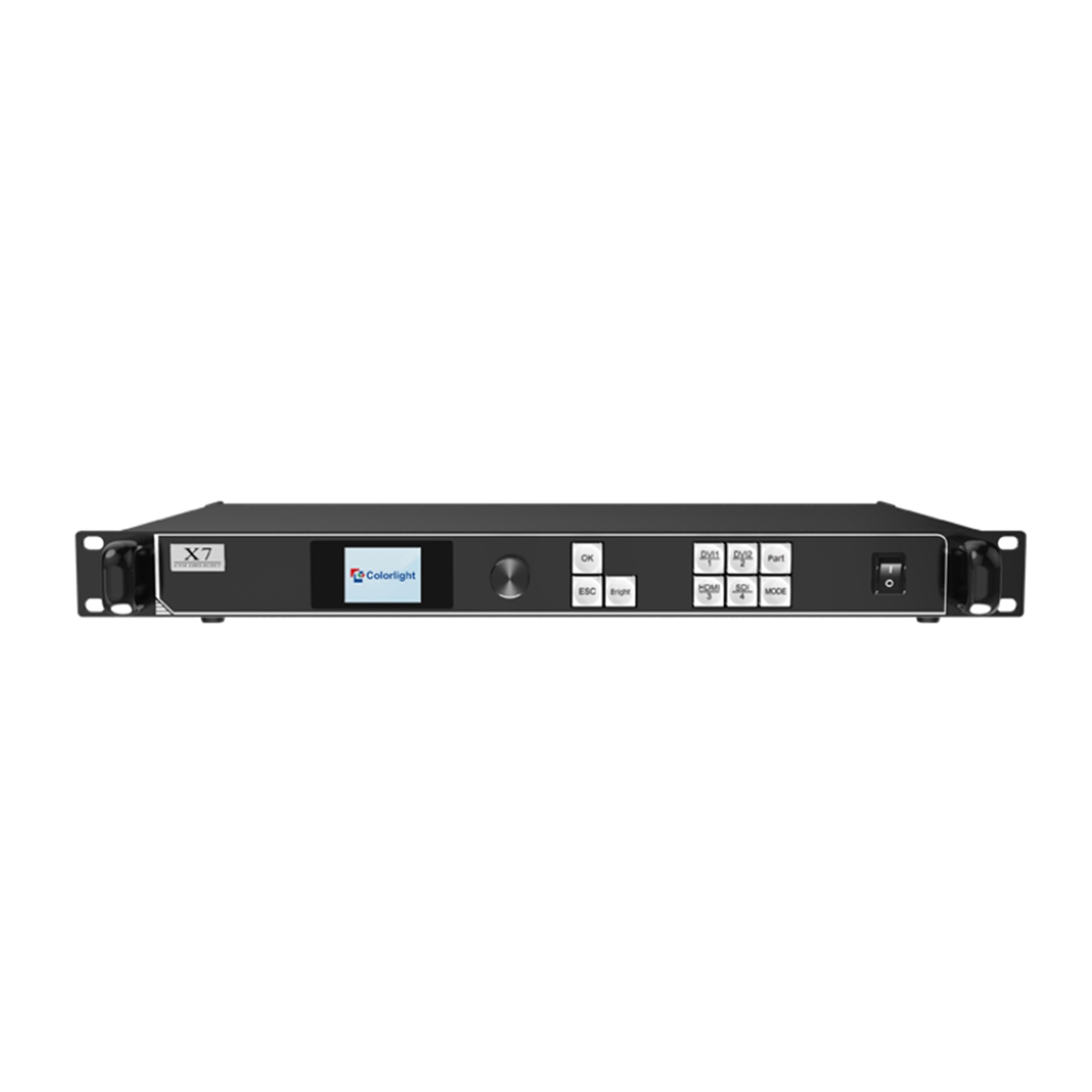

Colorlight X7 Professional Large LED Screen Controller

2944 AED

The Colorlight X7 Professional Large LED Screen Controller is a high-performance control system and video processing device specifically designed for LED engineering applications. It features multiple video signal interfaces and supports high-definition digital ports (SDI, HDMI, DVI). The X7 enables seamless switching between signals and supports broadcast-quality scaling and multi-picture displays.

Fast Response to serve you better

  • Onsite visit upon appointment
  • Competitive price from Factory outlet
  • Local Warranty for Quality assurance

Colorlight X7 Professional Large LED Screen Controller Overview:

The Colorlight X7 is a specialized control system and video processing equipment designed for large-scale LED applications. It supports a range of video signal interfaces, including high-definition digital ports (SDI, HDMI, DVI), enabling seamless signal switching. This controller is ideal for applications requiring broadcast-quality scaling and multi-picture displays.

Colorlight X7 Professional Large LED Screen Controller Features:

  • Supports various digital signal ports: 1×SDI, 1×HDMI, 2×DVI
  • Input resolution up to 1920×1200@60Hz
  • Loading capacity: 5.2 million pixels, Maximum width: 8192 pixels, Maximum height: 4096 pixels
  • Arbitrary switching of video sources
  • Supports three-picture display with flexible location and size adjustments
  • 16 preset modes for easy loading of saved parameters as needed
  • Supports HDCP1.4
  • Dual USB2.0 for high-speed configuration and cascading between controllers
  • Adjustment capabilities for brightness, chromaticity, contrast ratio, tone, and saturation
  • Enhanced grayscale performance at low brightness levels
  • Compatible with Colorlight’s receiving cards, multifunction cards, and optical fiber converters

Colorlight X7 Professional Large LED Screen Controller Parameters:

Input Interfaces:

  • DVI: 2 inputs, VESA Standard (supports 1920×1200@60Hz), supports HDCP
  • HDMI: HDMI input, EIA/CEA-861 Standard, supports 1920×1200@60Hz, supports HDCP
  • SDI: SDI input, compatible with 3G-SDI, HD-SDI, SD-SDI
  • AUDIO: Audio input, for use with optional multifunction cards

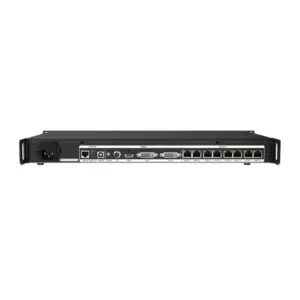

Output Interfaces:

  • Port1-8: RJ45, 8 Gigabit Ethernet ports

Controlling Interface:

  • USB_IN: USB input for parameter configuration via PC
  • USB_OUT: USB output for cascading with the next controller
  • RS232: RJ11 interface for central control connection

Specifications:

  • Size: 1U standard box (482.6mm×44mm×237.5mm)
  • Input Voltage: AC 100~240V
  • Rated Power Consumption: 25W
  • Working Temperature: -40~70℃



3.5

Brand

COLOR LIGHT

Color Light controllers are commonly used to manage LED displays, offering features for controlling content, managing display settings, and ensuring smooth operation. Here's a breakdown of what you might need to know:

1. Types of Color Light Controllers

  • Synchronous Controllers: Used for large LED displays, typically connected to a computer that provides real-time data.
  • Asynchronous Controllers: Can store content locally and play it without a constant connection to a computer, suitable for smaller displays or applications with pre-set content.

2. Setup and Installation

  • Hardware Installation: Connect the controller to your LED display and power supply. Ensure all cables are securely connected.
  • Software Setup: Install the necessary software on your computer. Color Light often provides software like LEDStudio or LEDVision for controlling their displays.

3. Programming and Content Management

  • Content Creation: Use the provided software to create and edit the content you want to display. This can include text, images, videos, and animations.
  • Content Upload: Transfer your content to the controller via a network connection or USB drive, depending on the model.
  • Scheduling: Set up schedules for your content to play at specific times or intervals.

4. Troubleshooting Common Issues

  • No Display: Check all connections, ensure the power supply is working, and verify the content is correctly uploaded.
  • Distorted Image: Ensure the resolution settings in the software match the physical resolution of the LED display.
  • Connection Problems: Check network settings and ensure the controller and computer are on the same network.

5. Product Information

  • Model Specifications: Different models have varying capabilities, such as the number of supported pixels, input types, and additional features.
  • Feature Comparison: Compare models to find the one that best suits your needs based on size, resolution, and functionality.
