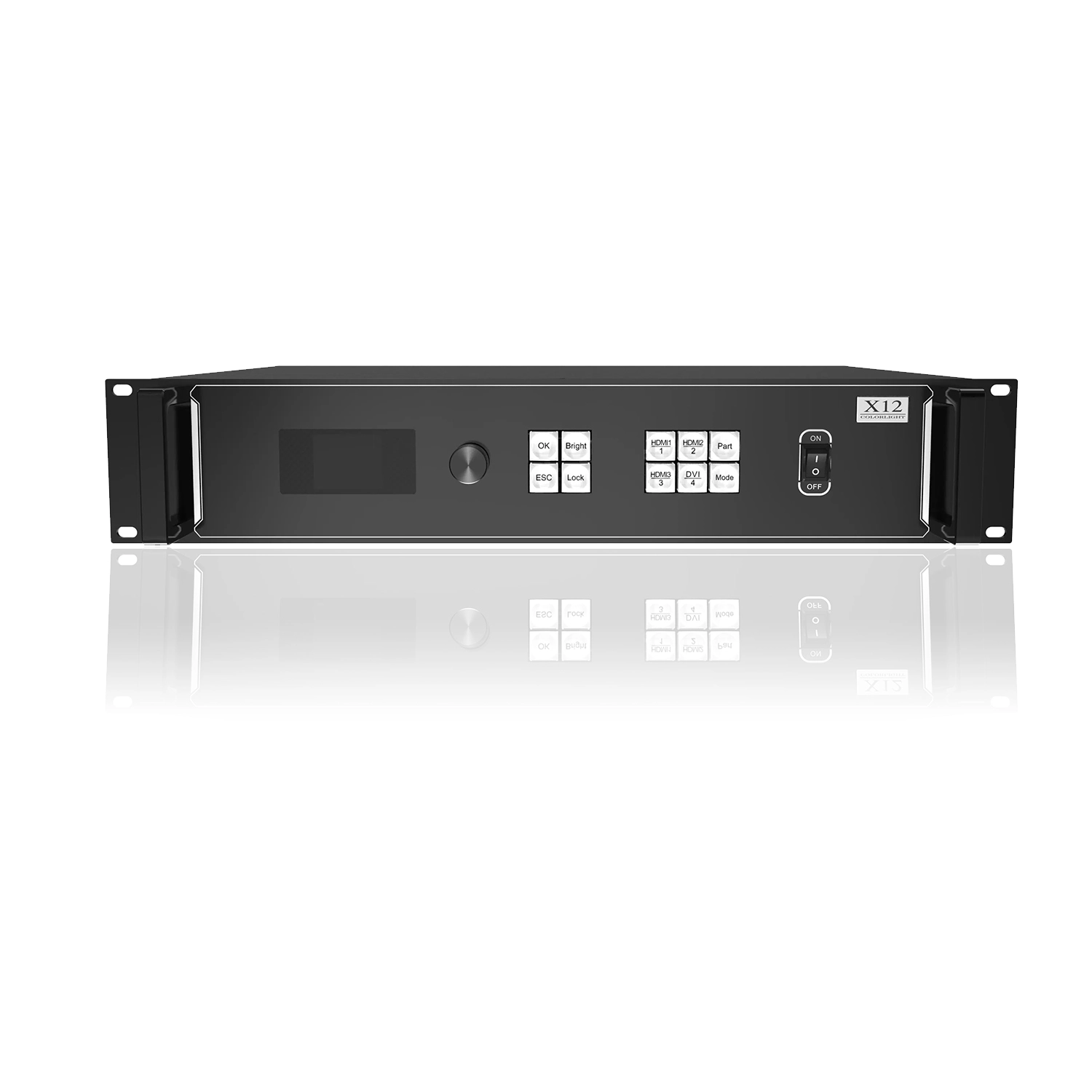

Colorlight X12 Professional LED Controller Box

Leave a Comment / By /

Colorlight X12 Professional LED Controller Box

3328 AED

The X12 is a professional-grade control system and video processing equipment designed for LED display engineering applications. It features high-definition digital interfaces, including DVI and HDMI, and supports seamless switching between multiple signals. Additionally, it offers broadcast-quality scaling and multi-screen display capabilities.

Fast Response to serve you better

  • Onsite visit upon appointment
  • Competitive price from Factory outlet
  • Local Warranty for Quality assurance

Colorlight X12 Professional LED Controller Box Features:

  1. Input Channels: 1 DVI input and 3 HDMI1.4 inputs.
  2. Maximum Load: Supports up to 7.2 million pixels, with a maximum width of 8192 pixels or a maximum height of 4096 pixels.
  3. Input Resolution: Single channel maximum input resolution is 1920×1200@60Hz, with customizable resolution settings and HDCP1.4 protocol high-bandwidth digital content protection.
  4. Output: 12-way Gigabit Ethernet port output, supporting single or dual redundant backup.
  5. Video Processing: Video sources can be switched, cropped, spliced, and zoomed arbitrarily.
  6. Multi-Screen Display: 3-screen display with adjustable window position and size.
  7. Adjustments: Brightness and color temperature adjustments, supporting contrast, hue, and saturation settings.
  8. Low Brightness and High Gray: Maintains complete grayscale display under low brightness conditions.
  9. Communication: Dual USB2.0 high-speed communication interface for computer debugging and arbitrary cascading between main controls.
  10. Control: RS232 serial protocol control.





Dimensions 8192 × 4096 cm

Brand

COLOR LIGHT

Color Light controllers are commonly used to manage LED displays, offering features for controlling content, managing display settings, and ensuring smooth operation. Here's a breakdown of what you might need to know:

1. Types of Color Light Controllers

  • Synchronous Controllers: Used for large LED displays, typically connected to a computer that provides real-time data.
  • Asynchronous Controllers: Can store content locally and play it without a constant connection to a computer, suitable for smaller displays or applications with pre-set content.

2. Setup and Installation

  • Hardware Installation: Connect the controller to your LED display and power supply. Ensure all cables are securely connected.
  • Software Setup: Install the necessary software on your computer. Color Light often provides software like LEDStudio or LEDVision for controlling their displays.

3. Programming and Content Management

  • Content Creation: Use the provided software to create and edit the content you want to display. This can include text, images, videos, and animations.
  • Content Upload: Transfer your content to the controller via a network connection or USB drive, depending on the model.
  • Scheduling: Set up schedules for your content to play at specific times or intervals.

4. Troubleshooting Common Issues

  • No Display: Check all connections, ensure the power supply is working, and verify the content is correctly uploaded.
  • Distorted Image: Ensure the resolution settings in the software match the physical resolution of the LED display.
  • Connection Problems: Check network settings and ensure the controller and computer are on the same network.

5. Product Information

  • Model Specifications: Different models have varying capabilities, such as the number of supported pixels, input types, and additional features.
  • Feature Comparison: Compare models to find the one that best suits your needs based on size, resolution, and functionality.

Reviews

There are no reviews yet.

Be the first to review “Colorlight X12 Professional LED Controller Box”
