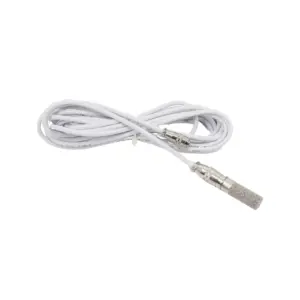

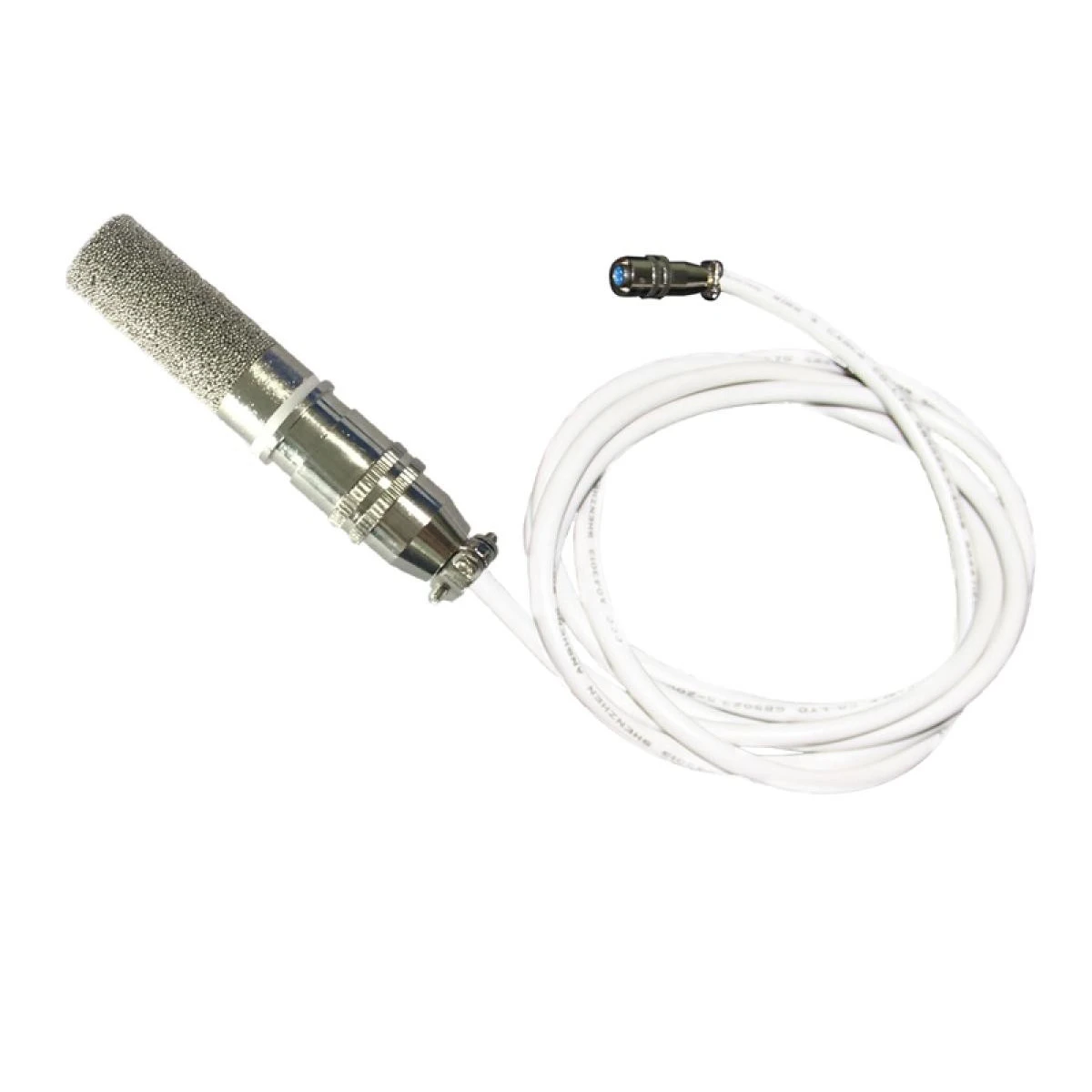

Colorlight SSR-TEMP sensor

276 AED

The SSR-TEMP is a high-precision temperature and humidity sensor with a sleek, compact design. It features a standard guide rail structure for easy wiring and installation. With high stability and strong anti-interference capability, it offers robust protection, including first-class lightning protection. This sensor is ideal for real-time monitoring of multiple environmental conditions.



4o

Fast Response to serve you better

  • Onsite visit upon appointment
  • Competitive price from Factory outlet
  • Local Warranty for Quality assurance

Colorlight SSR-TEMP LED Screen Temperature and Humidity Detector Features:

  • RS485 Interface: Communication distance up to 1200 meters.
  • High Precision Probe: Imported for high accuracy, wide range, and good consistency.
  • Easy Installation: Designed with a standard guide rail structure.
  • High Stability: Excellent anti-interference ability.
  • Input Voltage: DC5~12V.
  • Standard Communication Protocol: MODBUS RTU.
  • Robust Protection: Strong barrier property and first-class lightning protection.

Colorlight SSR-TEMP LED Screen Temperature and Humidity Detector Specifications:

  • Rated Voltage: DC5V-12V
  • Measuring Range:
    • Temperature: -40℃ to 120℃
    • Humidity: 0% to 100% RH
  • Measuring Accuracy:
    • Temperature: ±0.3℃, Resolution: 0.1℃
    • Humidity: ±3% RH, Resolution: 0.1 RH
  • Output Interface: RS485
  • Communication Protocol: MODBUS RTU
  • Communication Address: 1-247
  • Baud Rate: 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps
  • Average Power Consumption: <0.1W
  • Wire Length: 5 meters (standard)
  • Installation: Guide rail mounting, wall mounting indoors, ceiling mounting

Brand

COLOR LIGHT

Color Light controllers are commonly used to manage LED displays, offering features for controlling content, managing display settings, and ensuring smooth operation. Here's a breakdown of what you might need to know:

1. Types of Color Light Controllers

  • Synchronous Controllers: Used for large LED displays, typically connected to a computer that provides real-time data.
  • Asynchronous Controllers: Can store content locally and play it without a constant connection to a computer, suitable for smaller displays or applications with pre-set content.

2. Setup and Installation

  • Hardware Installation: Connect the controller to your LED display and power supply. Ensure all cables are securely connected.
  • Software Setup: Install the necessary software on your computer. Color Light often provides software like LEDStudio or LEDVision for controlling their displays.

3. Programming and Content Management

  • Content Creation: Use the provided software to create and edit the content you want to display. This can include text, images, videos, and animations.
  • Content Upload: Transfer your content to the controller via a network connection or USB drive, depending on the model.
  • Scheduling: Set up schedules for your content to play at specific times or intervals.

4. Troubleshooting Common Issues

  • No Display: Check all connections, ensure the power supply is working, and verify the content is correctly uploaded.
  • Distorted Image: Ensure the resolution settings in the software match the physical resolution of the LED display.
  • Connection Problems: Check network settings and ensure the controller and computer are on the same network.

5. Product Information

  • Model Specifications: Different models have varying capabilities, such as the number of supported pixels, input types, and additional features.
  • Feature Comparison: Compare models to find the one that best suits your needs based on size, resolution, and functionality.
