Description

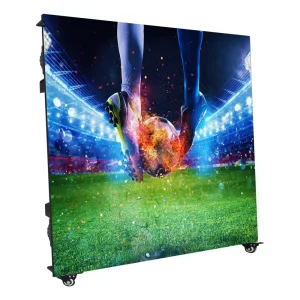

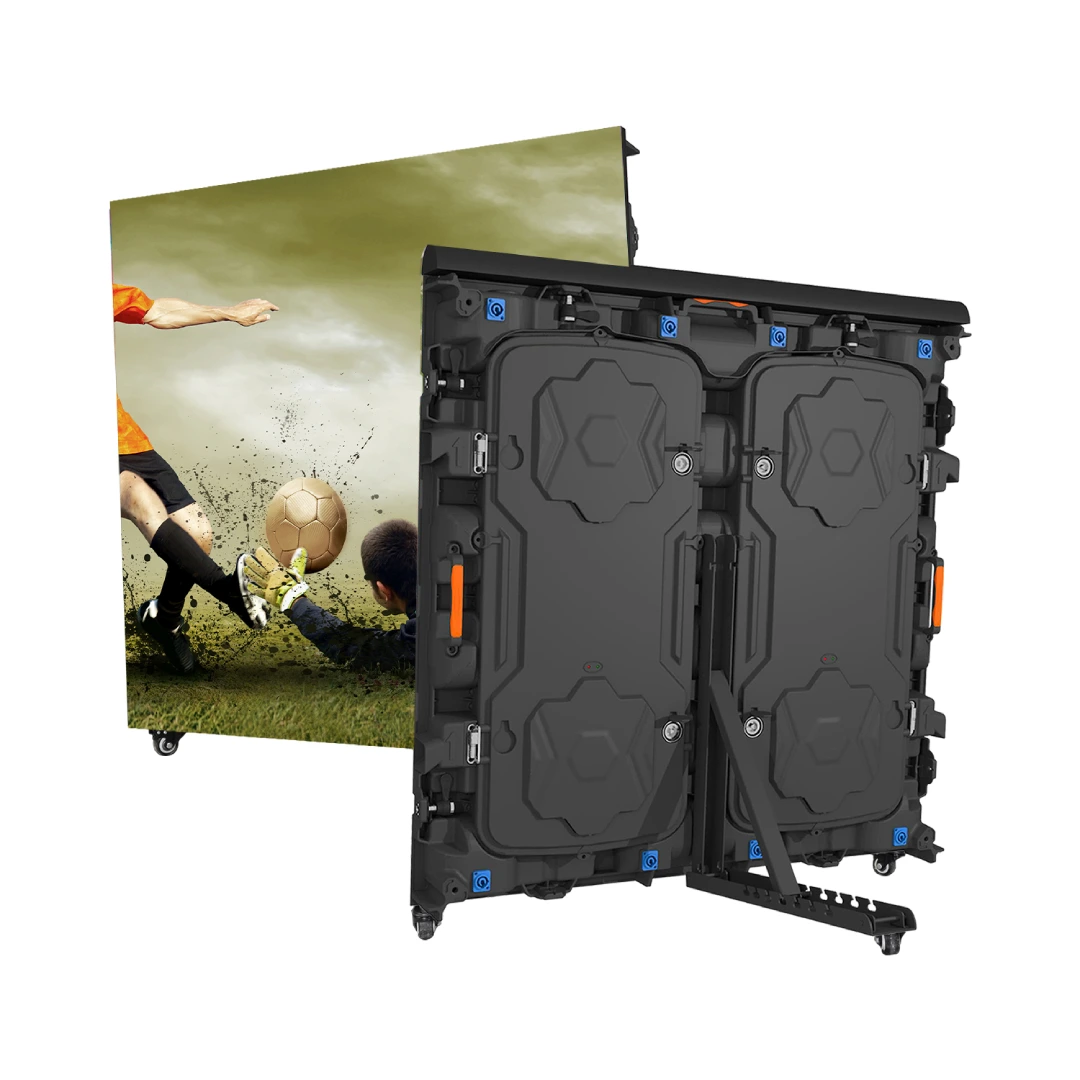

The 960mm x 960mm stadium LED screen cabinet is designed for large-scale, high-resolution displays suitable for outdoor stadiums and arenas. These cabinets form the building blocks of a modular LED display system, providing flexibility and durability for various applications, from live sports events to concerts and advertisements.
Key Features
- Dimensions and Structure
- Size: 960mm (W) x 960mm (H) x 120mm (D)
- Material: High-strength aluminum or steel, providing lightweight and sturdy construction.
- Design: Includes ergonomic handles and quick-lock mechanisms for easy assembly and disassembly.
- LED Module Configuration
- Pixel Pitch: Available in various pixel pitches (e.g., P6, P8, P10), affecting the resolution and viewing distance.
- Brightness: High brightness levels (5000-8000 nits) for clear visibility in direct sunlight.
- Refresh Rate: High refresh rates (≥1920Hz) to ensure flicker-free video playback.
- Weatherproofing and Durability
- IP Rating: IP65 or higher, providing protection against dust and water.
- Cooling System: Efficient cooling with built-in fans or heat sinks to prevent overheating.
- Connectivity and Control
- Power and Signal Input: Standardized connectors (e.g., Neutrik) for reliable power and signal transmission.
- Control System: Compatible with various control systems (e.g., Novastar, Linsn) for content management and screen synchronization.
- Installation and Maintenance
- Mounting Options: Versatile mounting options for both permanent installations and rental purposes.
- Accessibility: Front and rear access for easy maintenance and module replacement.
- Visual Performance
- Viewing Angles: Wide viewing angles (≥140° horizontal and vertical) for consistent image quality from various seating positions.
- Color Uniformity: Excellent color uniformity and contrast for vibrant and realistic images.
- Energy Efficiency
- Power Consumption: Low power consumption design to minimize operational costs.
- Power Supply: Reliable power supplies with redundancy options to ensure continuous operation.
- Customization
- Modular Design: Cabinets can be seamlessly connected to create large, customized screen sizes.

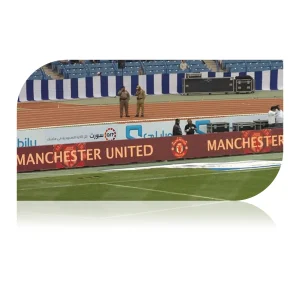

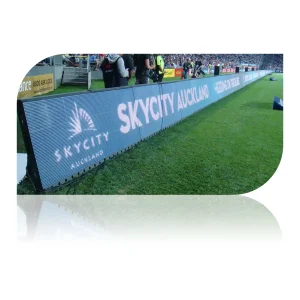

- Versatility: Suitable for various applications including scoreboards, live video feeds, and advertisements.
Specification:
| Model No. | SS-WF-P4 |
| Cabinet Size | 960*960mm |
| Pixel Pitch | P4 |
| Cabinet Resolution | 240*240 |
| Module Quantity | 3*6pcs |
| Viewing angle | 160/160 |
| Brightness (nits) | 5500CD |
| Refresh rate | 3840HZ |
| Communication type | LAN/USB/WIFI/CLOUD |
| Recommended viewing Distance | ≥4m |
| Power Supply: | 220-240V 50/60HZ |
| Maximum Power (W/Sqm) | 374 |
| Average Power (W/Sqm) | 243 |
| Operating life | 100000 hours |
| MTBF | 5000 hours |
| Net weight | 33kg |
| Gross Weight | 35kg |
| Package size: | 960*960*100mm |
| Installation: | Self stand with Adjustable support bracket |
| Service type | Back service |
| Security standard | GB4913/ENG0950 |
{
“@context”: “https://schema.org/”,
“@type”: “Product”,
“@id”: “https://wefoneled.com/product/stadium-led-screen-cabinet-960×960-ss-wf-p4/#product”,
“name”: “Stadium LED Screen Cabinet 960×960 / SS-WF-P4”,
“url”: “https://wefoneled.com/product/stadium-led-screen-cabinet-960×960-ss-wf-p4/”,
“description”: “DescriptionnThe 960mm x 960mm stadium LED screen cabinet is designed for large-scale, high-resolution displays suitable for outdoor stadiums and arenas. These cabinets form the building blocks of a mo…”,
“brand”: {
“@type”: “Brand”,
“name”: “WEFONE LED”
},
“manufacturer”: {
“@type”: “Organization”,
“name”: “WEFONE LED”
},
“offers”: {
“@type”: “Offer”,
“url”: “https://wefoneled.com/product/stadium-led-screen-cabinet-960×960-ss-wf-p4/”,
“availability”: “https://schema.org/InStock”,
“itemCondition”: “https://schema.org/NewCondition”,
“seller”: {
“@type”: “Organization”,
“name”: “WEFONE LED”
}
}
}
Technical Specifications References
Technical specifications cited in this product page are based on the following industry standards and verifiable sources:
- Refresh Rate (3840Hz): High refresh rate LED display specification verified per industry standards for flicker-free video playback. Reference: IEEE 1789-2015 — Recommended Practice for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers.
- Pixel Pitch Measurement: Pixel pitch (P值) measured as center-to-center distance between adjacent pixels in millimeters, per industry standard LED display specification convention (IES LM-80).
- Brightness (nits/cd/m²): Luminance measured in candela per square meter (cd/m²) per CIE S 017/E:2020 International Lighting Vocabulary standard.
- Viewing Angle: Measured per IEC 61747-5-3 standard for display devices, defining the angular range where contrast ratio exceeds 10:1.
- IP Rating: Ingress Protection ratings per IEC 60529 standard — IP65 indicates complete dust protection and protection against low-pressure water jets.
- Power Consumption: Measured per ENERGY STAR Program Requirements for Displays (Version 8.0) and IEC 62301 standard for standby power measurement.
