Colorlight X6 LED Controller

Leave a Comment / By /

Colorlight X6 LED Controller

2208 AED

The Colorlight X6 LED Controller is designed for LED displays and screens, supporting a loading capacity of up to 3.9 million pixels. It can handle a maximum width of 8192 pixels and a maximum height of 4096 pixels.
  • Rental LED Screens
  • Stadium Perimeter LED Displays
  • Sports LED Screens
  • 3D LED Screens
  • IP66 LED Screens
  • Commercial LED Screens
  • Energy-Saving LED Screens
  • Double-Sided LED Screens
  • Outdoor Front Service LED Screens
  • Outdoor Fixed LED Displays
  • 16:9 Aspect Ratio LED Screens
  • Small Pixel Pitch LED Screens
  • Indoor LED Screen

Fast Response to serve you better

  • Onsite visit upon appointment
  • Competitive price from Factory outlet
  • Local Warranty for Quality assurance

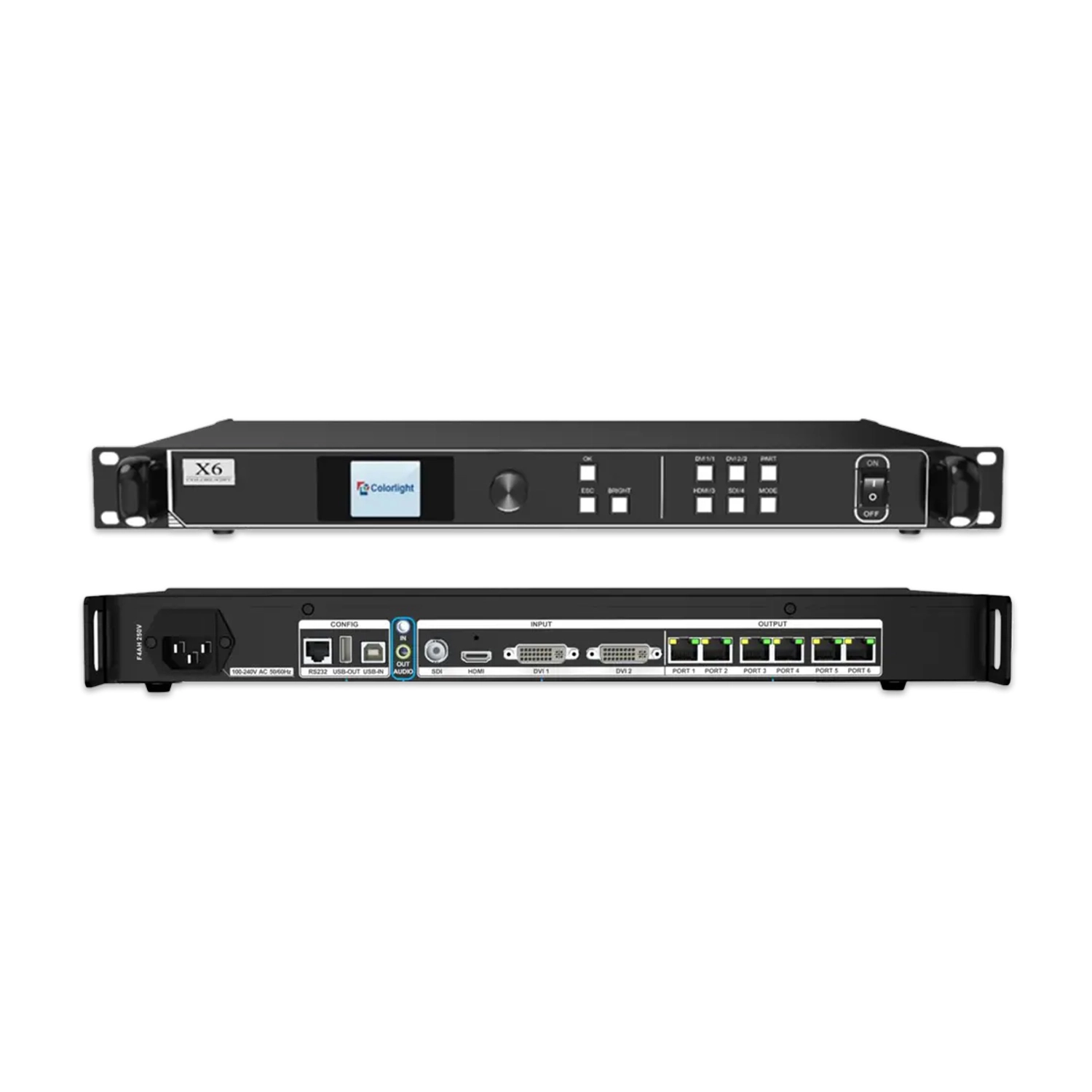

The X6 is a professional LED display controller and video processing system specifically designed for LED engineering applications. It features a range of video signal interfaces and supports high-definition digital ports (SDI, HDMI, DVI), allowing seamless switching between signals. The X6 offers broadcast-quality scaling and multi-picture display capabilities.

Features

  • Supports a variety of digital signal ports, including 1×SDI, 1×HDMI, and 2×DVI
  • Handles input resolutions up to 1920×1200@60Hz
  • Loading capacity of 3.9 million pixels, with a maximum width of 8192 pixels and a maximum height of 4096 pixels
  • Allows arbitrary switching of video sources
  • Supports three-picture display with adjustable location and size
  • Supports HDCP1.4
  • Equipped with dual USB2.0 for high-speed configuration and easy cascading between controllers
  • Enables adjustment of brightness, chromaticity, contrast ratio, tone, and saturation
  • Enhances gray-scale performance at low brightness
  • Compatible with all receiving cards, multifunction cards, and optical fiber converters from Colorlight



Brand

COLOR LIGHT

Color Light controllers are commonly used to manage LED displays, offering features for controlling content, managing display settings, and ensuring smooth operation. Here's a breakdown of what you might need to know:

1. Types of Color Light Controllers

  • Synchronous Controllers: Used for large LED displays, typically connected to a computer that provides real-time data.
  • Asynchronous Controllers: Can store content locally and play it without a constant connection to a computer, suitable for smaller displays or applications with pre-set content.

2. Setup and Installation

  • Hardware Installation: Connect the controller to your LED display and power supply. Ensure all cables are securely connected.
  • Software Setup: Install the necessary software on your computer. Color Light often provides software like LEDStudio or LEDVision for controlling their displays.

3. Programming and Content Management

  • Content Creation: Use the provided software to create and edit the content you want to display. This can include text, images, videos, and animations.
  • Content Upload: Transfer your content to the controller via a network connection or USB drive, depending on the model.
  • Scheduling: Set up schedules for your content to play at specific times or intervals.

4. Troubleshooting Common Issues

  • No Display: Check all connections, ensure the power supply is working, and verify the content is correctly uploaded.
  • Distorted Image: Ensure the resolution settings in the software match the physical resolution of the LED display.
  • Connection Problems: Check network settings and ensure the controller and computer are on the same network.

5. Product Information

  • Model Specifications: Different models have varying capabilities, such as the number of supported pixels, input types, and additional features.
  • Feature Comparison: Compare models to find the one that best suits your needs based on size, resolution, and functionality.
